Product Overview:

The ZDF-5227 series composite vacuum gauge consists of a resistance unit and a hot cathode ionization unit, and can measure a range from high vacuum to atmospheric pressure. Can connect one to three resistance gauges and one ionization gauge. The resistance unit adopts the constant temperature measurement method, which has high accuracy and fast response. Adopting a fully digital calibration method, the calibration of resistance gauges can be completed without the need for tools. In automatic mode, the ionization unit can be automatically controlled to turn on and off through a resistance unit, preventing damage to the hot cathode ionization gauge caused by opening in a low vacuum state.

Technical parameters:

Applicable regulations: ZJ-52T resistance gauge and ZJ-27 ionization gauge

Measurement range: 1.0x10⁵~ 1.0x10^-5Pa

Effective control range: 2.5x10³~ 5.0x10^-5Pa

Control output form: Relay contact output, normally open

Relay load: 3A/220V AC, non inductive load

Number of relay circuits: 6, control unit can be specified arbitrarily

Analog output form: 0~10V, 0~5V, 4~20mA optional

Serial communication: RS-232 or RS-485, Modbus RTU protocol

Display: LCD screen with Chinese characters and scientific notation display

Refresh time: 0.5 seconds

Power supply: 220VAC/50Hz

Rated power: 35W

Operating environment: -10~40 ℃, humidity less than 85%

Dimensions: 480 * 88 * 270mm

Instrument weight: approximately 3.5Kg.

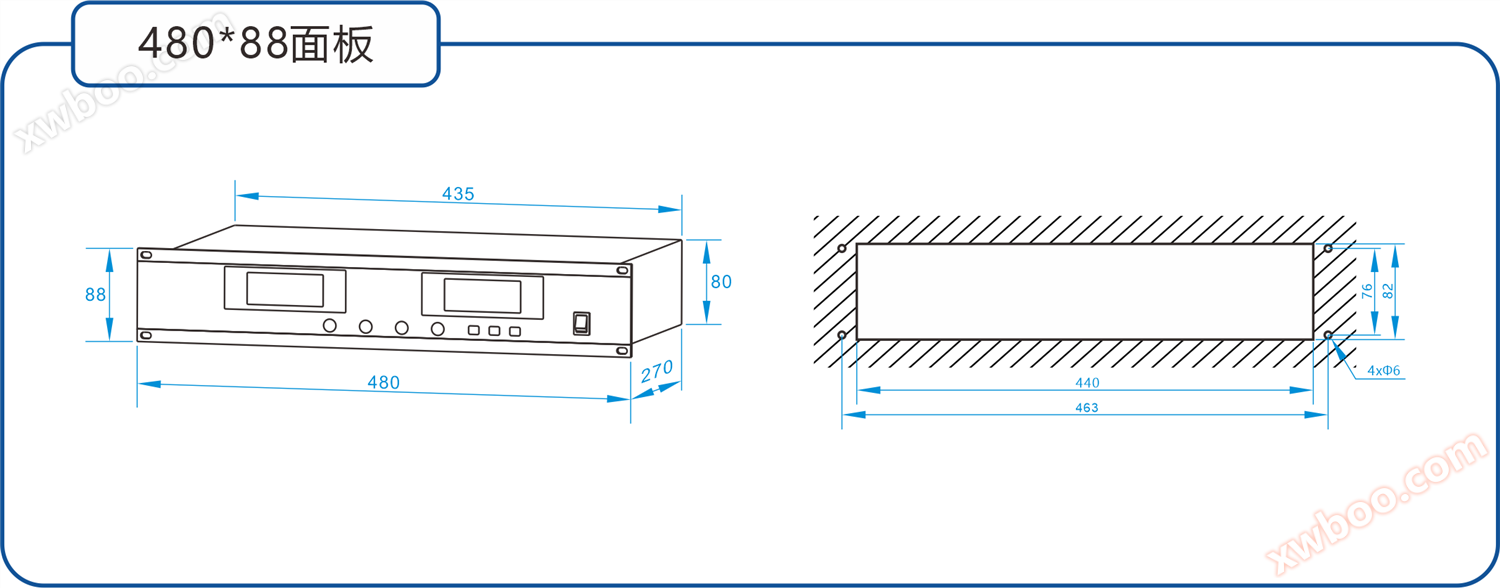

Dimensional drawing:
