Product Model: VICTOR 1501 Product Name: Mid mounted Cabinet Wireless High Voltage Nuclear Phase Analyzer
Product details
| Product model: VICTOR 1501 | |
|
Product Name:Wireless high-voltage phase analyzer with central cabinet |
|
Instruction manual download

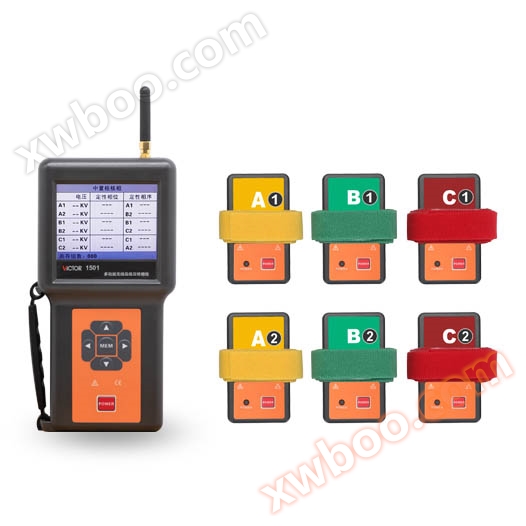

VICTOR 1501Wireless high-voltage phase analyzer with central cabinetIt is specially designed and manufactured for the phase detection of handcart type high-voltage switchgear (central cabinet). This instrument adopts non-contact phase detection technology, and receives phase detection data outside the central cabinet, which can simultaneously complete phase judgment and phase sequence testing of A, B, and C three-phase lines, avoiding the risk of direct contact between operators and high-voltage electricity inside the cabinet, eliminating the safety hazards of phase detection, and ensuring the safety of operators and equipment. The instrument operation is particularly simple, safe and fast.
VICTOR 1501Wireless high-voltage phase analyzer with central cabinetComposed of a host, detector group, monitoring software, USB communication cable, etc., the host adopts a 3.5-inch true color LCD screen, which can display phase, phase sequence, phase result and voltage level on the same screen; Simultaneously displaying three phases, clear and intuitive, making testing simpler and easier.
The monitoring software has online real-time monitoring, historical data query, phase indication, and phase sequence functions; It has functions such as reading, querying, saving, and printing historical data.
| Nuclear phase method | non-contact |
| Nuclear phase voltage | 10KV～35KV |
| Nuclear phase distance | 20m |
| Differential qualitative analysis | Same phase: -20 °~20 °; Heterophase: 100 °~140 ° and 220 °~260 ° |
| Phase range | 0°～360°； Accuracy: ≤± 8 °; Resolution: 1 ° |
| transmission frequency | 433MHz、315MHz |
| Phase indication | Simultaneous display of numbers |
| Voltage display | Display voltage level |
| data storage | 200 sets (data will not be lost in case of power failure or battery replacement) |
| Auto Shutdown | The instrument panel will automatically shut down after about 10 minutes of startup |
| battery voltage | When the low voltage symbol of the host battery is displayed, it reminds to replace the battery. At this time, the measured data is also accurate. Please replace the host battery. |
| The "POWER" indicator light of the detector flashes slowly, indicating that its battery is low. Please replace the detector battery. | |
| rated current | Detector: 30mA max; Host: 150mA max |
| Working temperature and humidity | -10℃～40℃； Below 80% RH |
| Storage temperature and humidity | -10℃～60℃； Below 70% RH |
| Suitable for safety regulations | Requirements of GB13398-92, GB311.1-311.6-8, 3DL408-91 standards and the newly issued national power industry standard "General Technical Conditions for 1kV-35kV Portable Nuclear Phasers Used in Live Working DL/T 971-2017" |
| insulation test | Host and detector: AC3700V/rms (between exposed metal and plastic casing) |
| 一般特性 | |
| power supply | Host: DC9V, 6 LR6 5th alkaline batteries; Detector: DC6V, 4-cell button battery LR44 |
| Display Size | 3.5-inch color screen; Display area: 71mm × 53mm |
| body color | |
| body weight | 950g (including battery) |
| Body dimensions | Host 195mm × 100mm × 45mm; detector 80mm × 46mm × 26mm |
| Standard Accessories | 6 detectors, 1 software CD, 1 USB data cable, 6 LR6 batteries, 24 LR44 button batteries, 1 cloth bag, and 1 screwdriver (for battery replacement) |
