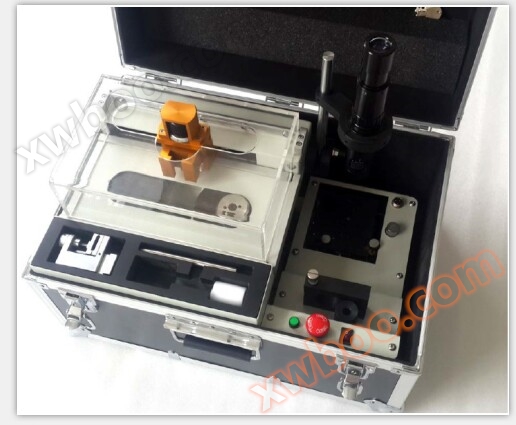

Characteristics of Terminal Section Analyzer Section 3：
1. Convenient sample production, no need for resin solidification
This system only takes 3-5 minutes to produce a sample, saving you a lot of time and improving work efficiency. The traditional resin solidification method involves curing the sample with resin, cutting the resin, rough grinding, and grinding. Making a sample takes several hours and can affect measurement accuracy.

2. Terminal specific fixtures can be suitable for terminals of various sizes
The newly developed fixture is suitable for various types of terminals. When cutting and grinding, there is no need to worry about the deformation of the biting teeth or the flying of the core wire. No special skills are required, anyone can easily operate it. The entire operation is simple and convenient, greatly improving work efficiency.

3. High performance microscopes and specialized analysis software can accurately measure length, calculate area, etc
This microscope system can generate upright three-dimensional spatial images when observing objects, with strong stereoscopic effect, clear and wide imaging, and a long working distance; The perfect combination of high-quality optical system and high-resolution camera can generate high-definition images with magnifications ranging from 16x to 312x on computer screens, even thick or extremely thin wire harness terminals can be displayed clearly and perfectly; The high-precision wire harness terminal image measurement and analysis software can instantly measure various data of wire harness terminals, including width CW, height CH, and area. The measurement accuracy at high magnification is 1-2 μ m.

Technical Parameter
1. Terminal section analysis: Japan imported segmented zoom optical system
2. Total video magnification: 30~312X
3. Applicable range of wires: 0.01m ㎡~33 (50) m ㎡
4. Power supply: AC100V~AC240V
5. Imaging system: 3 million Japanese industrial high-definition video system
6. Cutting blade specification: Φ 150X0.5mm (imported from Germany, delicate and durable, other companies use domestic coarse sand particles, short service life, rough terminal surface after cutting). ）
7. Grinding sandpaper: 1200#
8. Standard fixture: 0.01-33 (50) mm2
9. Precision integrated automatic cutting and grinding equipment, German motor 0-4000rpm stepless speed regulation
10. High precision reference ruler: 0.01/10mm
11. Terminal corrosion: liquid cleaning (completed in 5 seconds)
12. Lighting source: All white adjustable LED lighting device
13. Dimensions: W500XD350XH350
