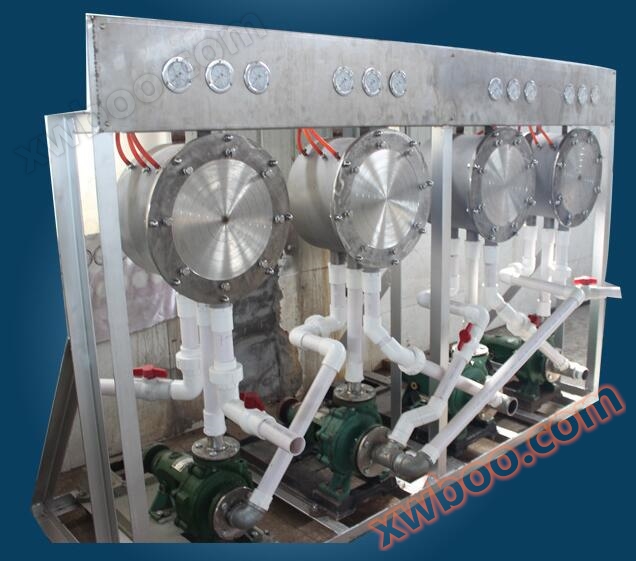

Cyclone separatorIt is the main equipment for refining various types of starch production, which plays a role in separating starch milk protein, fine fibers, etc. in the process; At the same time, it plays a significant role in washing and concentrating starch milk. Compared with traditional starch production processes, it has the characteristics of closed production, stable production, rapid separation, effective energy saving, and reduced sewage.

The cyclone is divided into shell, core plate, cyclone tube, pipeline, pressure gauge, starch pump, etc. It has the characteristics of easy maintenance, simple operation, and no noise.

product description
Overview: XLQ-200/500 starch cyclone is our company's leading product in recent years. This product is an improvement and design based on our old products both domestically and internationally. From 2006 to 2007, it ranked among the top sellers in China and obtained ISO9000 quality system certification in China.
Characteristics: The cyclone produced by our company is used for defatting various types of starch slurry and modified starch, separating fine residue, separating, washing, and concentrating proteins, etc; Continuous concentration, separation, and clarification of suspensions in the chemical and food industry. It has the advantages of compact structure, high separation accuracy, and good sealing effect, and is widely used in potato, cassava, sweet potato, corn, wheat, cereal starch, and other chemical industries.
● Cyclone performance parameters: feed concentration ≥ 4 (Be), discharge concentration 18-22 (Be), pressure 0.3-0.8 (Mpa), single tube production capacity 150-300Kg/h
● Piping and Pump Distribution for Cyclone Station:
XLQ-200: equipped with swirl tube ￠ 10, ￠ 15 (35-60); Equipped with pumps MX40-40, MX50-40, MX40-60
XLQ-250: equipped with swirl tube ￠ 10, ￠ 15 (45-75); Equipped with pumps MX40-40, MX50-40, MX50-60
XLQ-300: equipped with swirl tube ￠ 10, ￠ 15 (55-86); Equipped with pumps MX40-40, MX50-40, MX50-60
XLQ-325: equipped with swirl tube ￠ 10, ￠ 15 (62-95); Equipped with pumps MX40-40, MX50-40, mx65-60
XLQ-350: equipped with swirl tube ￠ 10, ￠ 15 (70-115); Equipped with pumps MX50-40, MX65-40, MX80-60
XLQ-400: equipped with swirl tube ￠ 10, ￠ 15 (95-150); Equipped with pumps MX65-40, MX80-40, MX100-60
XLQ-430: equipped with swirl tube ￠ 10, ￠ 15 (135-180); Equipped with pumps MX65-40, MX80-40, MX100-60
XLQ-450: equipped with swirl tube ￠ 10, ￠ 15 (165-218); Equipped with pumps MX80-40, MX100-50, MX100-60
XLQ-500: equipped with swirl tube ￠ 10, ￠ 15 (195-280); Equipped with pumps MX100-40, MX100-50, MX125-60
