Yuequan Stainless Steel Deep Well Pump SP Stamping SeriesDeep well pump and hot water pumpCarefully selecting reliable materials for each component, it can achieve maximum durability and reliability even under extremely harsh operating conditions, and can work continuously without failure for a long time. The impeller is made of food grade stainless steel (AISI304/AISI316) welded together, and thanks to advanced design, it can greatly improve the pump efficiency requirements. Can be paired with EBARA Japan's Ebara motor and Franklin shielded motor from the United States for better results

Purpose:

·Suitable for deep wells, hot water wells, and ocean water lifting;

·Suitable for lifting water from rivers, reservoirs, canals, etc;

·Suitable for farmland irrigation and water use for humans and livestock in high-altitude mountainous areas;

·Suitable for water supply and drainage in cities, factories, railways, mines, and construction sites;

·Suitable for deep well pumps, fountain pumps, hot spring pumps, in pipe pumps, etc

·Can be combined with EBARA Japan's Ebara Electric and Franklin Electric from the United States to form the best hydrodynamic system

characteristic:

1Maximum sand content 50g/m³

2The maximum temperature resistance can reach 90℃

3. Made of food grade SUS304 (SUS316L) welded together, it has excellent strength and durability

4. During operation, the noise level is below 40dB, providing better static sound effects

5. The water machine connection seat is a standard American specification, suitable for Franklin in the United States, EBARA in Japan, Ebara, etc., and easy to assemble

Main models:

·4 "Stainless steel deep well pump: SP-01/02/03/05/08/10/14m³/h

·6"Stainless steel deep well pump: SP-17/30-46/60m³/h

·8"Stainless steel deep well pump: SP-77/95m³/h

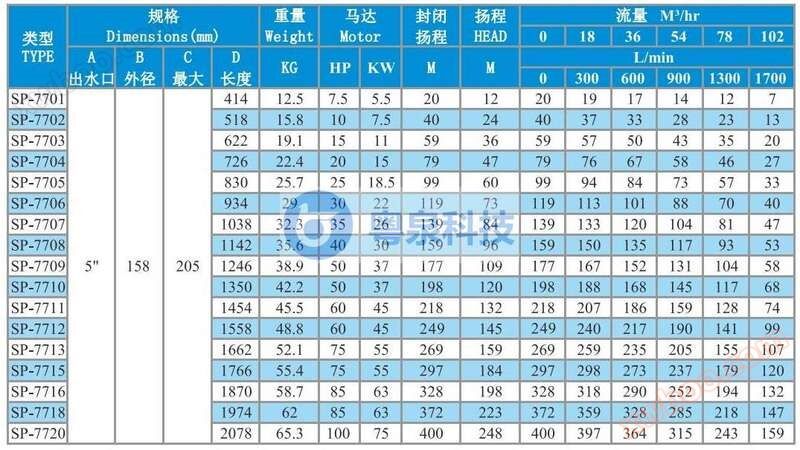

Stainless steel stamping pump body SP-77 seriesDeep well pump and hot water pump

Optional motor:

1. Water shielded motor (EBARA Japan Ebara deep well motor tank motor/Franklin submersible motor/Taiwan shielded motor/Yuequan shielded motor)

It can be directly connected to the pump body for use, without the need for water or oil injection, with food grade hygiene and durability, making it the best choice for domestic water pumps.

The EBARA raw water shielded motor is the latest generation of safety and hygiene grade motors, which is easy to use. It adopts a water lubrication design, and the filling liquid uses propylene glycol aqueous solution. It not only lubricates the bearings, but also has the functions of rust prevention of internal parts of the motor, prevention of freezing during storage, and heat dissipation inside the motor to avoid local heating.

In addition, propylene glycol can also be used as a food additive and is a safety product to avoid water pollution. The power cord and connector are specially designed with high water resistance and durability in an integrated form, which does not require special maintenance, is not easily deformed or broken, and has excellent electrical performance.

The outer tube of the stator is welded with stainless steel and lined with stainless steel. It is sealed with epoxy resin to provide good insulation effect. Corrosion resistance, fast heat dissipation, and resistance to deep water pressure, with a working diving depth of up to 300 meters, it can be used for various submersible pumps to provide the best power in water.

2. Water filled motor (Taiwan water line motor/Yuequan water filled motor)

Fill the production tank with water, otherwise it may cause the motor to burn out. Water lubrication and cooling are repairable and cost-effective.

Internally, it uses food grade lubricating oil and high-performance ball bearings. Its sturdy center ball bearing ensures smooth and durable operation. Adopting enameled wire rewinding winding and detachable waterproof power connector, it has excellent electrical performance, high efficiency, and repairability. Stainless steel outer tube, corrosion-resistant, fast heat dissipation, resistant to deep water pressure, with a working diving depth of up to 300 meters, suitable for various submersible pumps to provide the best power in water.

3. Oil filled motor (most domestic products belong to this type)

Before use, it is necessary to fill with cooling oil and lubricating oil, which can be repaired with mature technology and low cost. If there is oil leakage, it will have a certain impact on the quality.

The electric motor adopts rolling bearings, with small changes in axial clearance and smooth operation. In order to withstand the upper and lower axial forces generated during the operation of the water pump and eliminate the influence of rotor movement on the mechanical seal, two centripetal thrust ball bearings are used at the lower part of the motor to lock and position the rotor axially. The locked motor rotor eliminates the gap between upper and lower movement. Therefore, when the leakage of the mechanical seal is small and the wear resistance is good, the working conditions of the motor stator winding and bearings are well guaranteed. With the help of the sleeve coupling, the phenomenon of impeller wear due to upper and lower movement is eliminated during the operation of the water pump, thereby improving the service life of the water pump.
