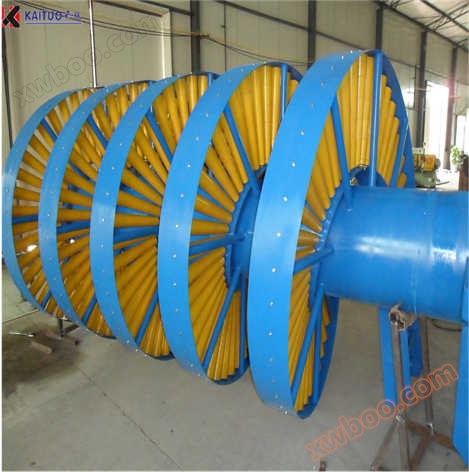

Device Name

spiralconveyor

Related Categories

Spiral conveyor, screw conveyor

screw conveyor

parameter

（1）height：1000mm —10000mm unlimited.

(2) Width:00mm、300mm、400mm、600mm.

(3) Weight per meter:5KG - 60KG.

（4）Speed regulation and range: fixed speed, variable frequency speed regulation. Speed 0-30meters per minute.

（5)mode of transportation：Plastic steel roof chain, non powered drum.

（6）Rack material: carbon steel material, stainless steel material.

feature

(1) Characteristics of Spiral Conveyor:

1) It has a small cross-sectional size, good sealing performance, stable and reliable operation, safe operation, and easy maintenance.
（2）Characteristics of screw conveyor:

1）Good environmental performance.
2）The conveying capacity is large, which is 1.5 times that of a screw conveyor with a shaft of the same diameter.

3）Large turning distance, low energy consumption, and unobstructed discharge port.

4）Long conveying distance, single machine conveying length can reach 60-70m.

5）Compact structure, space saving, beautiful appearance, easy operation, economical and durable.

Scope of Application

1) Spiral conveyors are widely used in industries such as beverages, beer, cigarettes, postal services, newspapers, printing, food, pharmaceuticals, logistics, and electronics.

2) Screw conveyorWidely used in chemical, building materials, metallurgy, grain and other sectors, it can transport powdery, granular and small pieces of materials with low viscosity, low risk of deterioration, and no time for agglomeration at an inclination angle β<20 °.
