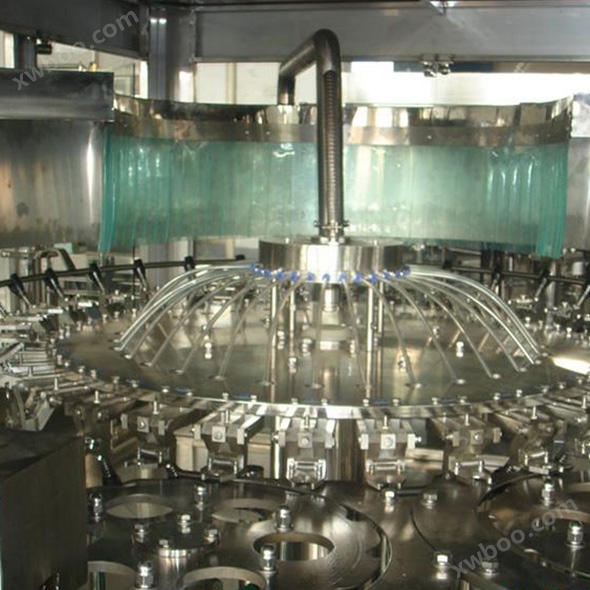

The small bottle water filling machine is a rotary bottle washing machine, mainly used for washing new bottles of beverages, water and other products. Then send the bottle to the filling machine for product filling. PET bottles are fed into the equipment by a bottle sorting star wheel, clamped by a clamp and flipping mechanism, and then turned downwards. After rinsing with sterile water and draining, they are automatically flipped upwards and transported to the filling machine by a bottle discharge star wheel. The main structure of the equipment, the parts in contact with the flushing medium, and the external protective cover are all made of high-quality stainless steel materials; Open gear transmission. A brand new stainless steel clamp with a simple structure and easy adjustment; The contact area with the bottle mouth is small, effectively avoiding secondary pollution of the bottle mouth.

The filling part realizes the filling of materials into the washed bottles sent by the bottle washing machine.

The filling valve adopts a pressure filling negative pressure reflux method, which is fast and sensitive to filling, and has high filling liquid level accuracy. There is no spring inside the valve, and the material does not come into contact with the spring, which is beneficial for cleaning the inside of the valve. To ensure the filling process and temperature, the filling valve keeps the material in a micro reflux state when there are no bottles or when the machine is stopped. The filling cylinder adopts a full cylinder method to ensure stable pressure inside the cylinder.

The small bottle water drinking mineral water book filling machine has a complete CIP cleaning interface.

Adopting a dual guide rod bottle lifting structure to ensure stable bottle lifting and alignment.

The main transmission adopts gear transmission and open combination transmission, which has high efficiency, low noise, long service life, easy maintenance, and sufficient lubrication. The main motor speed of the machine is controlled by a frequency converter, and the small bottle drinking mineral water filling machine adopts stepless frequency conversion speed regulation.

The capping machine drives the rotating disc to rotate through a reducer. Remove the lid from the hopper through the outlet under the action of centrifugal force. There is a positive and negative lid separation device at the exit. When the reverse lid passes by, it automatically falls into the return pipeline and is blown into the hopper by wind power. The small bottle mineral water filling machine can only smoothly enter the slide with a positive lid. The amount of lid in the hopper is automatically detected by a photoelectric switch to control the lid conveying machine, ensuring that the lower lid achieves the desired effect. When the cover enters the slide, it can smoothly enter the feeding cover plate. To prevent accidents, an anti reverse cover dial is also installed on the slide to ensure that the cover entering the feeding cover plate is correct. A pair of photoelectric switches are also installed on the slide to immediately stop the host when no cover is detected. In order to effectively remove damaged covers without anti-theft rings and residual covers when cleaning the hopper, there is a movable outlet directly opposite the hopper outlet to meet this function.
