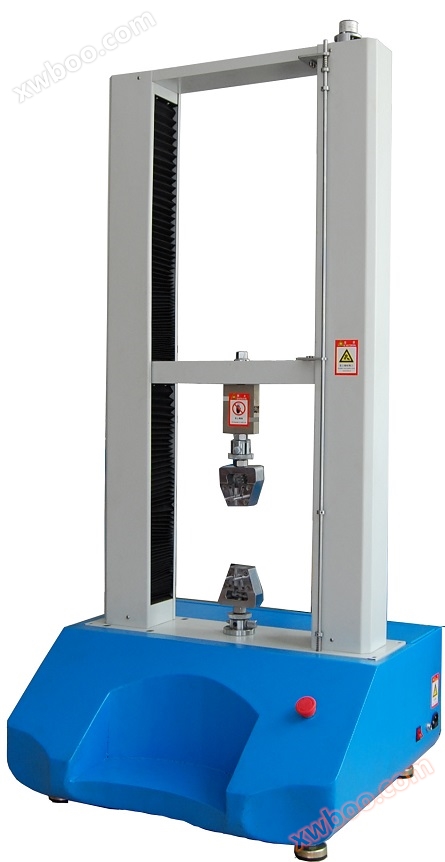

This machine is widely used for mechanical performance testing of non-metallic materials such as rubber, plastic, wires and cables, textiles, waterproof materials, non-woven fabrics, as well as metal wires, metal foils, metal sheets, and metal rods. It is also suitable for various finished product tensile, compression, peeling, shear cutting, and tear tests when used in conjunction with specialized fixtures.

*Using Japanese servo motor drive, high-precision trapezoidal screw and synchronous belt transmission, smooth operation, low noise;

*Digital display of force value, maximum force value, displacement, and extension displacement, with infinitely adjustable test speed;

*Using high-precision encoders to measure displacement, with a force resolution of up to 1/500000, high experimental accuracy, wide measurement range, easy operation, and low cost; Equipped with automatic shutdown, overcurrent, overvoltage, and overload protection functions for test breaking;

Capacity: 0-20kn (2000kgf) (choose 0-10 tons for other capacities)

Function Introduction: The computer tensile testing machine manufactured by Dongguan Hongbao Testing Company adopts self-developed computer chip control, which can print multiple data, has high control accuracy, and is easy to operate; Adopting modular design, various accessory varieties are complete, and the matching is flexible.

Packaging form: Durable and waterproof wooden box packaging, shockproof and moisture-proof.

Machine color: ship gray machine

Feedback time for after-sales service: within 48 hours

Free warranty period of one year, lifetime after-sales service

1.1 Basic Configuration:

1.1. 1. Material of upper and lower crossbars: Made of 45 # die steel through grinding and processing, with a parallel error of ≤ 0.5mm and high rigidity;

1.1. 2. Trigger stop lever: Made of South Korean chrome steel rod, high rigidity, durable and deformation free;

1.1. 3 Transmission: Adopting high-precision trapezoidal screws produced in Germany and synchronous belt/wheel transmission from Itada, Japan, high efficiency, high rigidity, small deformation, and low noise;

1.1. 4. Guidance: Adopting chrome steel rods and four column guidance from South Korea, with excellent wear resistance and coaxiality;

1.1. 5 Drivers: Using Japanese servo motors and Japanese servos as drivers, providing stable, wide adjustable speed drive, high speed, low vibration, and high-speed positioning.

1.1. 6. Displacement measurement: Using a Japanese LINE high pulse (2500r/p) photoelectric encoder to measure displacement, up to 0.01mm;

1.1.7 Force measurement: Using American transmission high-precision explosion-proof tension compression load element, accuracy: 0.03% F.S

1.1.8 Rack cover: Made of cold rail steel plate cut and folded, and treated with electrostatic spraying, it is corrosion-resistant, rust proof, and has a rich texture;

1.1.9 Machine base: Made of 45 # mold steel through grinding and welding, and horizontally positioned by a professional fitter level, it is sturdy and durable. The surface is treated with electrostatic spraying, which is corrosion-resistant, rust proof, and has a rich texture;

1.1. 10 Control box:

A、 Outer cover: made of cold rail steel plate cut and folded, and treated with electrostatic spraying, corrosion-resistant, rust proof and textured;

B、 Control device: equipped with an incoming power switch and an emergency stop button.

1.1.11 Fixture: Made of G7 chromium steel wire cut and heat treated (hardened), with high rigidity, no deformation, high hardness: ≥ 60hrc, and tested by concentricity tester to ensure consistency of material stress points;

2、 Software

Software interface:

Standard version material testing software main interface (standard configuration)

feature：

High precision: ± 0.25%, high resolution: 1/500000, the highest in the industry;

Programmable control: realize dead loop control of load, position, deformation, time, etc; (Professional Edition)

Adopting PHILIPS 32-bit ARM chip, superior to industry DSP processing technology;

Real time collection, refreshing of curves and recording of test data, multiple report outputs and printing, etc;

2. Control mode:

Computer software sets various control methods such as speed, load fracture (rupture), and operating time

Special manual operation box: used for method calibration and positioning when holding test specimens

Automatic determination of material fracture, crushing, etc. and automatic shutdown, with the option to set automatic return

3. Curve type: The vertical and horizontal coordinates of the curve can be set arbitrarily.

Load displacement, load time, displacement time.

Stress strain, strain time, stress time.
