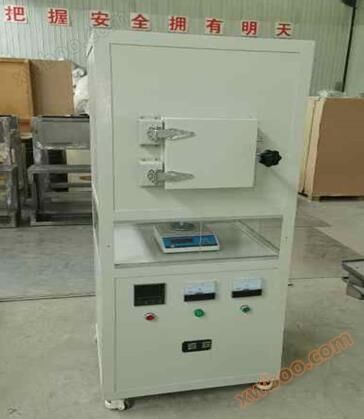

The high-temperature in-situ weighing instrument uses silicon molybdenum rods as heating elements, and the rated temperature of the furnace is1600℃, made of fully fiber vacuum formed mullite fiber, temperature measuring element uses platinum rhodium-Platinum rhodium thermocouple（BThe division number is used to achieve automatic constant temperature or programmed temperature rise and fall of the electric furnace through a precision digital intelligent temperature controller. An electronic balance is placed directly below the furnace, and the weight of the sample inside the furnace (placed in a dedicated crucible) is measured in real time through an upright corundum tube and crucible. Used for weight measurement in high-temperature sintering, melting, heat treatment and other processes of metal, non-metal, alloy, ceramic and other materials in laboratories, industrial and mining enterprises, research institutes and other units.

Atmosphere protection type can be accessedN2 TheArTheO2Wait for the atmosphere to conduct the experiment.

Main technical parameters

1. Maximum temperature:1600℃；

2. Power Supply and Power:AC380V/8KW；

3. Furnace size(Depth x Width x Height)：200×200×150mm,Alumina crystal fiber furnace;

4. Temperature measurement: Double platinum rhodium(Bgraduation mark)thermocouple+Precision digital programming temperature controller;

5. Temperature control: power transformer+Controllable silicon phase-shifting voltage regulation+intelligencePIDadjust+50Temperature rise and fall of segment program, temperature control accuracy: ±1℃；

6. Heating element: silicon molybdenum rod;

7. An electronic balance is placed directly below the furnace, and the weight of the sample inside the furnace (placed in a dedicated crucible) is measured in real time through an upright corundum tube and crucible;
