Product Features:

True effective value measurement, with an accuracy better than 0.5 level;

A product has the function of measuring both active and reactive power simultaneously;

Unipolar measurement does not require directional separation and can automatically identify phase;

Output 0-5V/1-5V/0-20mA/4-20mA can be freely selected;

Capable of selecting unipolar and bipolar measurement settings;

Wide power supply, compatible with 12V/24V power supply;

The built-in function switch can be freely set;

Performance indicators:

*Auxiliary power supply: DC+11V~+28V (power consumption<60mA), AC/DC 220V;

*Input range: Voltage AC: 0~500V;

Current AC: 0-25A (BS3 aperture: 6.5mm); AC: 0~700A (ES3 aperture: 20mm);

Current AC: 0-200A (DS5 aperture: 11mm); AC: 0~800A (ES5 aperture: 20mm);

*Output: 0-5V/1-5V/0-20mA/4-20mA or 2.5 ± 2.5V/3 ± 2V/

DS5 and ES5 can simultaneously output two analog signals

10 ± 10mA/12 ± 8mA (bipolar measurement), can be freely selected.

*Output ripple:<10mV

*Working environment: Temperature: -20~60 ℃

*Accuracy level: 0.5 level (using reference error)

*Temperature drift:<200ppm/℃

*Isolation withstand voltage: DC 2500V

*Load capacity: Voltage output ≥ 1k Ω, current output ≤ 300 Ω

*Response time: ≤ 250 mS

*Input overload capacity: Continuous overload: 120%; Short term overload: 2 times the rated voltage input value, applied for 1 second; Input 20 times the rated current and apply for 1 second.

*Rated power consumption:<1.5W

*Frequency response range: 45Hz-400Hz

*Surge impact immunity:

Power Port Level 2 1000V (L-N/2 Ω/Integrated Wave)

Analog I/O Port Level 2 1000V (L-N/40 Ω/Integrated Wave)

*Pulse group immunity: none

*Storage conditions: -40~+70 ℃

Model Description:

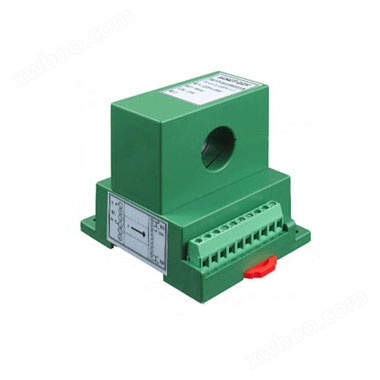

Appearance and wiring terminal diagram:
