Rack mounted network management type lightweight network management switch
Rack mounted network management type light network management switch product overview: Light network management industrial switches are designed for h
Product details

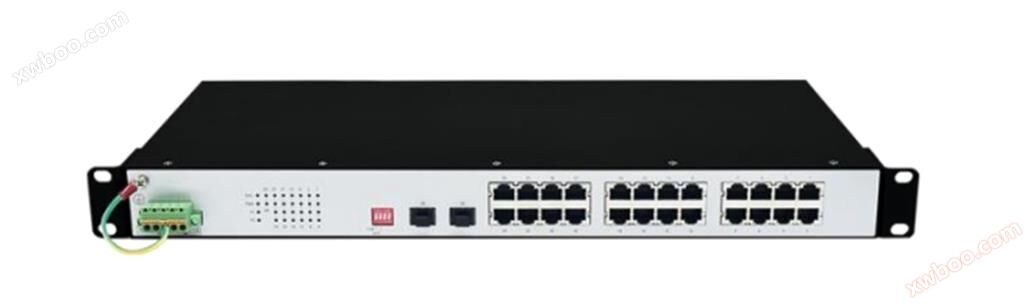

Rack mounted network management type lightweight network management switch
Product Overview:
Light network management industrial switches are designed for harsh industrial environments and provide an economical solution for industrial Ethernet connections. Through EMI/EMC high-level testing, all models have passed strict aging testing to meet industrial environmental requirements.
Features:
Backplane bandwidth up to 52Gbps;
Support redundant dual input power supply;
Support web network management;
Support VLAN (port isolation) and RSTP (self-healing ring network);
The working temperature range is -25 ° C~+75 ° C;
Metal casing, IP40 protection level;
MTBF ≥ 300,000h。
technical parameters
|
Product Specifications |
HS2000-24GT2GPTDWR |
|
Product description |
|
|
Full Gigabit Ethernet switch, capable of web management, storage and forwarding switching mode, fanless design |
|
|
Port type and quantity |
Total number of ports: 26 Supports 24 Gigabit Ethernet ports and 2 Gigabit SFP optical ports |
|
other interfaces |
|
|
power supply |
1 x 5-pin terminal block |
|
Network distance - cable length |
|
|
Twisted Pair (TP) |
0 - 100 m |
|
Single mode fiber (SM) |
F. SFP module |
|
Multimode fiber (MM) |
F. SFP module |
|
Network scale - number of connections |
|
|
Linear/star topology structure |
arbitrary |
|
Specifications |
|
|
Working Voltage |
100~240VAC redundant dual input |
|
power consumption |
<30W |
|
power protection |
Support overload protection and reverse protection |
|
MACAddress Table |
8K |
|
weight |
≤1.7KG |
|
Ethernet specifications |
IEEE 802.3 CSMA/CD Method and Physical Layer Specifications Conflict Detection Carrier Multi Sense Algorithm and Physical Layer Description IEEE 802.1p Priority Queuing Priority Control IEEE 802.1q VLAN Tagging Virtual Local Area Network Tagging IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.3ac VLAN Tagging Virtual Local Area Network Tagging IEEE 802.3ad Link Aggregation Link Aggregation IEEE 802.3x Flow Control Flow Control IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3z Gigabit Ethernet Gigabit Ethernet IEEE 802 Networks Network Technology RFC 768 UDP User Datagram Protocol RFC 791 IP Internet Protocol RFC792 ICMP Internet Control Message Protocol RFC 793 TCP Transmission Control Protocol RFC 826 ARP Address Resolution Protocol RFC 862 Echo Protocol Response Protocol RFC 863 Discard Protocol Abandons Protocol RFC 1027 Using ARP to Implement Transparent Subnet Gateways 代理 ARP RFC 1112 Host extensions for IGMP IP multicast RFC 2068 HTTP Hypertext Transfer Protocol RFC 2236 IGMPv2 Internet Group Management Protocol v2 |
|
processing method |
Parallel storage and forwarding |
|
Switch characteristics |
Exchange rate: 1488000 pps Backplane bandwidth of switch: 52Gbps Number of VLANs: 4096 Package cache size: 4.1Mbit |
|
software |
|
|
management |
HTTP based WEB, SNMPv1, SNMPv2 |
|
diagnosis |
Indicator lights, log files, port images, TRAP |
|
redundant function |
RSTP |
|
filter |
4K VLANS，IPv4 Multicast， Storm control, supporting Jumbo Fram |
|
DIP switch |
VLAN (Port Isolation), RSTP (Self healing Ring Network) |
|
environmental conditions |
|
|
Operating Temperature |
-40℃ ~ +75℃ |
|
Storage/transportation temperature |
-40℃ ~ +85℃ |
|
Relative humidity (no condensation) |
5~95% (no condensation) |
|
mechanical structure |
|
|
Dimensions (W × H × D) |
440 x 43.8 x 200 mm |
|
Install |
rack |
|
protection level |
IP40 |
|
mechanical properties |
|
|
vibration |
IEC 60068-2-6 |
|
impact |
IEC 60068-2-2 |
|
free fall |
IEC 60068-2-3 |
|
circuit board |
Compliant with IPC standards |
|
EMCAnti interference characteristics |
|
|
EN 61000-4-2Electrostatic Discharge (ESD) |
Level 3 |
|
EN 61000-4-3Electromagnetic field RS |
Level 3 |
|
EN 61000-4-4Fast instantaneous EFT |
Level 3 |
|
EN 61000-4-5Surge |
Level 3 |
|
EN 61000-4-6Conducting CS |
Level 3 |
|
IEC(EN)61000-4-8 |
Level 3 |
|
EMI |
|
|
FCC 47 Part 15 |
FCC 47 Part 15 Class B |
|
EN 55032 |
Class B |
|
EN 55035 |
Class B |
|
Supporting equipment and accessories |
|
|
auxiliary equipment |
Equipment, terminal block, operation manual |
Order Information
|
model |
description |
Product Brochure |
|
HS2000-24GT2GPTDWR |
Web network management 2 Gigabit SFP+24 Gigabit power, redundant dual power: AC110/220, rack mounted |
|
