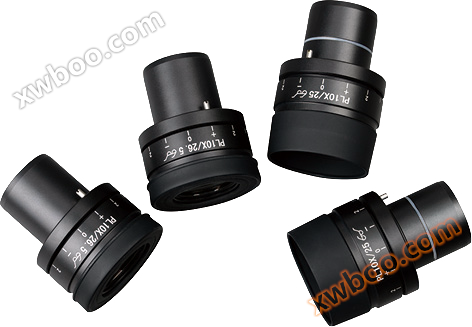

High eye point ultra wide field of view flat field eyepiece

The field of view range of the eyepiece matched with the ultra wide field of view observation tube has also increased from the traditional 22mm to the world leading 25mm and 26.5mm, providing a flatter observation range and improving work efficiency. A larger range of refractive power adjustment can meet the needs of more users.

The RX50 research grade upright biological microscope eyepiece adopts a positioning pin structure for easy visual adjustment.

The foldable rubber eye mask prevents external stray light interference. Users with glasses can flip down the eye mask to prevent the glasses from touching the eyepiece and scratching the glasses and eyepiece.

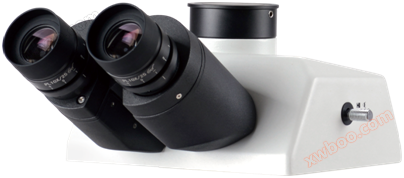

Multi level spectral ratio observation head design

The all-new RX50 series observation tube adopts a wide beam imaging system design and a three position hinged three eye observation tube. On the basis of using 100% imaging light for binocular observation or three eye photography, an additional two eye: three eye ratio of 20%: 80% is added, making it convenient for users to compare and observe under the lens images and video images simultaneously. The two-stage positive image hinge three eye observation tube ensures that the direction of sample movement is consistent with the direction you observe through the eyepiece, making the operation more convenient.

Large platform with left and right hand positions

The new stage of RX50 research grade upright biological microscope adopts a bidirectional wire rail transmission mechanism, which completely solves the safety hazards caused by the protruding transverse guide rails of traditional platforms, and plays an overload protection role at the end of the bidirectional stroke, improving the reliability of the mechanism. Meanwhile, the wire rail transmission technology brings a more comfortable operating experience.

The adjustment handle of the loading platform can be installed on either side of the platform according to customer needs to suit different customer preferences. Low hand position, ergonomic design with X and Y dual axis adjustment, easy to achieve humanized and stress free operation, improving work comfort.
Adopting a damping double slice clamp, it can simultaneously clamp two slices for rapid comparative analysis, with a movement range of 80mmX55mm. Accuracy of 0.1mm.

The stage adopts a special surface treatment process for corrosion and wear resistance. The circular arc transition design around the platform reduces stress concentration while preventing damage caused by collisions.

Modular body for improved system compatibility

The RX50 research grade upright biological microscope frame adopts a modular structure design, with the cross arm separated from the microscope body, thus achieving compatibility with biological/fluorescence frame systems and allowing for more freedom in selection.

High sensitivity coarse fine adjustment coaxial focusing mechanism

The new focusing mechanism adopts a two-stage transmission of coarse adjustment and fine adjustment, with a tension adjustment device and a random upper limit device. It can adjust the weight of the coarse adjustment mechanism by itself and set any position as the upper limit of the coarse adjustment. The coarse adjustment stroke is 25mm, and the fine adjustment accuracy is improved to 1 μ m. The high-sensitivity fine adjustment mechanism can not only perform precise focusing, but also serve as a precision measurement.

RX50Research grade upright biological microscope configuration parameters
