RFID high-frequencyKeyboard interface IC card readerHR2005， It can output the ID number directly to the cursor flashing on Windows or Android systems without the need for development, with a working frequency of 13.56MHz and support for high-frequency ISO14443TypeA protocol, which is widely used inSmart bookshelfRFID applications such as electronic work tickets, membership management, industrial production lines, workstation management, intelligent filing cabinets, shared bookshelves, reader card reading, distributed libraries, drifting bookshelves, archive management, drug consignment cabinets, personal identification, bus card recognition systems, self-service certificate machines, logistics, access control, food and drug anti-counterfeiting, product quality inspection, etc.

Related solutions: RFID intelligent bookshelf personnel identification

Keyboard interface IC card readerRFID characteristics

Supporting protocol: ISO14443TypeA;

Working frequency: 13.56MHz;

Effective distance: ISO14443A: 0-15cm

Advanced tag collision processing algorithm, high recognition rate;

Built in transmitting and receiving antenna, with an effective distance of up to 100mm;

Supports USB 1.1 interface power supply, no external power supply required;

UKB working mode, actively outputting ID numbers, and can also customize other formats for output;

*Effective distance and protocol format, related to external antennas, electronic tags, and working environment;

Keyboard interface IC card readerphysical property

Size: 105mmx70mmx11mm;

Weight: 80g;

Working temperature: -10~+60 ℃;

Storage temperature: -25~+80 ℃;

Unless otherwise specified, the specifications shown are taken from the working conditions of TA=25 ℃ and VCC=+3.3V;

electrical characteristics

Power supply voltage: 5V, maximum voltage 5.5V;

Working current: 90mA;

Application case: RFID high-frequency reader HR9216 applied to self-service book borrowing and returning machines

Related solutions: RFID high-value consumables cabinet/drug retail cabinet management system

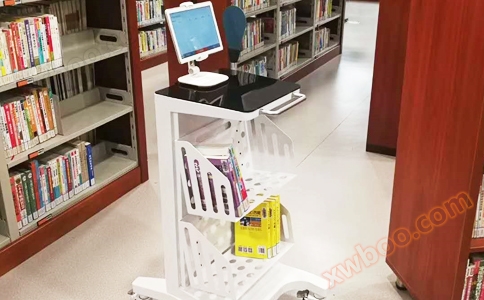

Application case: RFID high-frequency reader HR9226 applied to book inventory vehicle

Keyboard interface IC card readerIntroduction to RFID Hardware

The RFID high-frequency HF book adhesive label HT6507 is a specialized tag for high-frequency book archive management, with a working frequency of 13.56MHz and ISO/IEC 15693 protocol. It adopts a unique tag antenna design and can read multiple tags over long distances. It is widely used in library management, intelligent archive cabinets, unmanned retail, asset management, clothing management, production line management, equipment inspection and other fields.

RFID high-frequency HF book adhesive label HT6507

The RFID high-frequency ISO/IEC15693 protocol smart disk PCB tag HT8355 adopts NXP I CODE II tag chip, combined with PCB antenna designed for intelligent catering management, with a recognition distance of up to 50cm, has excellent performance, and can read multiple tags at a long distance. It is widely used in the fields of intelligent catering management, self-service checkout, plate recognition, asset management, production line management, injection molding management, industrial identification and other RFID RF identification systems.

RFID high-frequency 15693 protocol intelligent dining plate PCB tag HT8355

The RFID Ultra High Frequency Desktop USB Interface Card Dispenser UR5002 is a high-performance UHF band ISO18000-6C (EPC CLASS1 G2) protocol ISO 18000-6B protocol electronic tag reader/writer that supports USB powered USB communication. It is widely used in various wireless radio frequency identification (RFID) systems such as electronic tag information input, IC card issuance, vehicle card registration, member management, fixed asset management, warehouse tag input, conference check-in, conference check-in system, access control system, anti-counterfeiting system, and production process control.

RFID ultra-high frequency desktop USB interface card dispenser UR5002

The RFID high-frequency intelligent display cabinet shielding antenna HA4232 is a high-performance 50 Ω standard impedance 13.56MHz high-frequency metal shielding antenna. The standard SMA interface supports ISO/IEC 15693 protocol electronic tag readers with a maximum power of 6W, and the sensing distance can reach 55cm. It is widely used in various wireless radio frequency identification (RFID) systems such as catering management (smart disks), self-service book borrowing and returning machines, conference sign ins, book sorting lines, production line management, confidential file recognition, jewelry management, new retail, mini libraries, drifting bookcases, intelligent file cabinets, license management, intelligent reagent cabinets, laboratory reagent management, intelligent display cabinets, counter commodity display management, voucher seal card management, medical high-value consumables management, etc.

RFID high-frequency intelligent display cabinet shielding antenna A4232

RFID high-frequency librarian workstation electronic tag reader/writer HR9206 high-frequency medium power reader/writer, supports ISO/IEC 15693 protocol, built-in antenna, supports RS232 or USB data interface. Widely used in various RFID system application fields such as library staff workstations, archive management staff workstations, test tube reagent management systems, medical high-value consumables management, clothing intelligent cash register systems, catering intelligent cash register systems, and confidential document management.

RFID high-frequency librarian workstation electronic tag reader/writer HR9206

RFID high-frequency industrial integrated reader/writer head HR2878, with a card reader operating frequency of 13.56MHz, supports reading tags that comply with the ISO/IEC 15693 protocol format, and can read and write complete data block data. Adopting copper nickel plated material shell, high protection level, RS232 and RS485 data interfaces, supporting industrial MODBUS RTU and other communication protocols, convenient for users to integrate into PLC and other control systems. Mainly used in industrial production lines, mold management, tool management, warehouse management AGV、 Various RFID system application fields such as anti-counterfeiting traceability, logistics sorting, and production process control.

RFID high-frequency industrial integrated read-write head HR2878

The RFID high-frequency HF new retail vending cabinet reader/writer HR7768 is a high-performance ISO/IEC 15693 protocol electronic tag reader/writer that supports 24 antenna interfaces, adopts a fully digital signal processing design, and has a software adjustable RF output power of 0.5-5W. Widely used in new retail unmanned vending cabinets, intelligent filing cabinets, test tube reagent management, industry confidential document management, fluent shelves, intelligent filing cabinets, drug consignment cabinets, intelligent filing cabinets, product positioning, jewelry management, self-service laundry services, production process control and other RFID system application fields.

RFID high-frequency HF new retail vending cabinet reader/writer HR7768

The RFID Ultra High Frequency (UHF) Android (Android 8.1 (periodic upgrade)) handheld terminal MT50A is equipped with an 8-core 2.0GHz high-performance processor, combined with the Android 8.1 (periodic upgrade) system, equipped with 2GB RAM and 16GB ROM memory, as well as a 5.5-inch IPS high brightness screen, optional barcode (one-dimensional or two-dimensional), RFID low-frequency (125KHz), high-frequency (13.56MHz), and ultra-high frequency (902-928MHz) high-performance modules. All six sides can withstand the impact of falling from a height of 1.5 meters to a cement floor, with an IP rating of up to IP65. It can be widely used in various wireless radio frequency identification (RFID) systems such as logistics and express delivery, equipment inspection, fixed asset management, medical care, anti-counterfeiting and traceability, product quality inspection, water and electricity meter reading, clothing ordering, mobile sales operations, etc.

RFID Ultra High Frequency (UHF) Android (Android 8.1 (periodic upgrade)) Handheld MT50A

RFID National Standard Military Standard Multi purpose RFID Ultra high Frequency Industrial Handheld Data Terminal PDA '>Handheld MT3, equipped with an eight core high-performance processor, combined with Android 9.0 (periodically upgraded) operating system, barcode (one-dimensional or two-dimensional), RFID high frequency (13.56MHz), ISO15693 card reading distance up to 30cm, ultra-high frequency (902-928MHz high-performance based on IMPINJ R2000 chip deep development) module, standard recognition distance up to 20 meters, can support national standard GB29768 protocol, military standard GJB7377.1A-2011/2018 protocol, WIFI 2.4G/5G dual band, 4G full network, GPS。 It can be widely used in various wireless radio frequency identification (RFID) systems such as confidential file management, equipment inspection, fixed asset management, medical care, anti-counterfeiting traceability, product quality inspection, warehouse management, mobile operations, etc.

RFID National Standard Military Standard Multi purpose Handheld Phone MT3

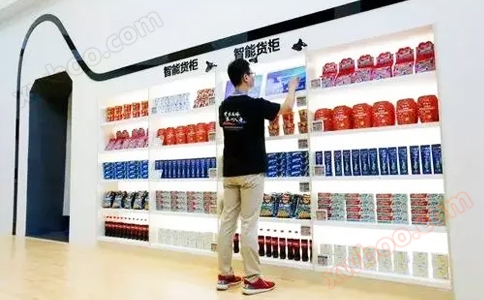

RFID high-frequency intelligent shelf HZHJ is developed for industries that require strict supervision of important items such as reagents, samples, medical consumables, non-metallic products, accessories, material boxes, etc. Using the 13.56MHz high-frequency ISO/IEC15693 protocol reader/writer HR7768, it accurately locates items to each layer. The intelligent shelf does not require signal shielding, and there is no recognition area outside the shelf. Combined with the backend management system, it can view real-time information about items on the shelf and customize various statistical reports according to customer requirements. Combining identity recognition technology can determine the information of personnel who receive and place items.

RFID intelligent shelf
