RFID high-frequency HF inventory driver holding antenna HA5911 is a high-performance 50 Ω standard impedance 13.56MHz high-frequency handheld soft antenna that supports ISO/IEC 15693 protocol electronic tag readers. The antenna body is slim and can be bent and inserted between books at a certain angle. Widely used in various wireless radio frequency identification (RFID) systems such as book inventory, archive inventory, automatic inventory vehicles, mold management, asset inventory, personal identification, item management systems, and production process control.

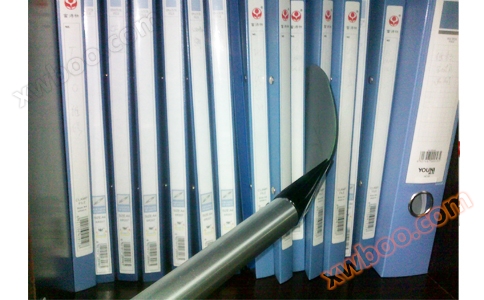

Insert a schematic diagram between books

RFID characteristics

Can support up to 1.5W RF power;

1.5m coaxial cable, SMA interface;

Elegant design;

ABS shell;

The card reading distance can reach 25cm;

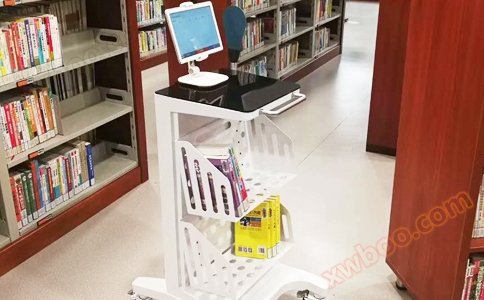

Application case: RFID high-frequency inventory vehicle

physical properties

Color: Metal aluminum, gray;

Length: 550mm;

Width: 115mm;

Thickness: 22mm;

Handle length: 385mm;

Weight: 330G;

RFID intelligent filing cabinet/filing cabinet high-frequency antenna HA2621, developed for high-frequency bagged archives and vertical document management, adopts an integrated injection molded shell, with a milky white appearance that is easy to integrate with the surrounding environment. The back plate screws are easy to install and integrated into the intelligent filing cabinet. The antenna tuning board developed for metal cabinets is suitable for various metal environments, achieving stable reading of high-frequency tags. It is applied in file management occasions such as intelligent filing cabinets, intelligent filing cabinets, confidential file management, intelligent bookshelves, ticket management, shared books, micro libraries, distributed libraries, etc.

RFID intelligent filing cabinet/filing cabinet high-frequency antenna HA2621
