RFID high-frequency HFIdentity recognition IC card reader/writerHR2008 Network InterfaceElectronic tag reader/writerThe working frequency is 13.56MHz, supporting high-frequency HF (13.56MHz) ISO14443TypeA&ISO14443TypeB protocols, and supporting RS232+TCP/IP interfaces. Widely used in membership management, industrial production lines, electronic workstations, electronic work tickets, file management, license management, voucher seal card management, intelligent filing cabinets, shared bookshelves, mini libraries, personal identity recognition, bus card recognition systems, self-service certificate machines, logistics, access control, food and drug anti-counterfeiting, product quality inspection and other RFID applications.

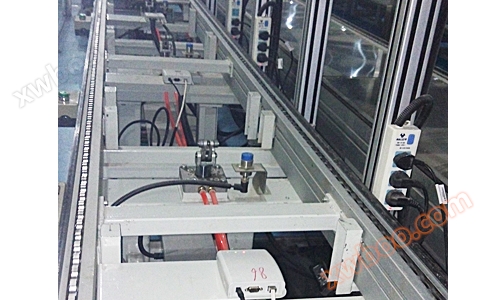

Related solutions: RFID intelligent industrial production line

IC card reader/writercharacteristic

Supporting protocols: ISO14443TypeA&ISO14443TypeB;

Working frequency: 13.56MHz;

Effective distance: ISO14443A: 0-15cm;

ISO14443B:0-5cm；

Secondary development: Provide dynamic link libraries (DLLs) and demo software source code;

Advanced tag collision processing algorithm, high recognition rate;

Data interface: RS232+TCP/IP interface;

*The effective distance is related to the protocol format, antenna, electronic tag, and working environment;

IC card reader/writerphysical property

Size: 123mmx94mmx29mm;

Weight: 144g;

Working temperature: -10~+60 ℃;

Storage temperature: -25~+80 ℃;

Unless otherwise specified, the specifications shown are taken from the working conditions of TA=25 ℃ and VCC=+3.3V;

electrical characteristics

Power supply voltage: 12V maximum 15V;

Working current: 150mA;

Related solutions: Introduction to the application of RFID technology in medical consumables management

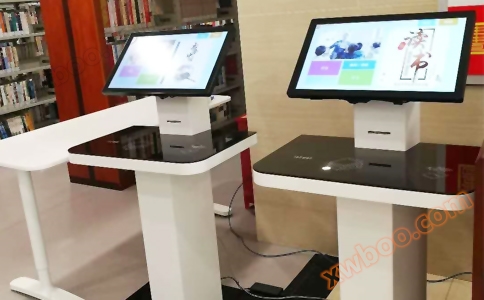

Application case: RFID high-frequency reader HR9216 applied to self-service book borrowing and returning machines

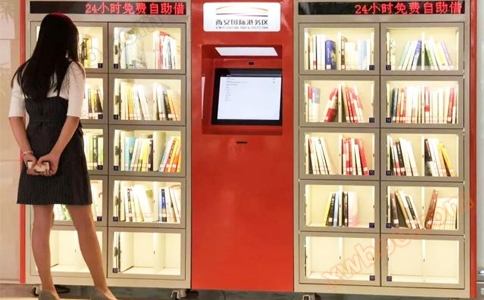

Application case: RFID high-frequency reader HR2006 applied to intelligent bookshelf personnel recognition
