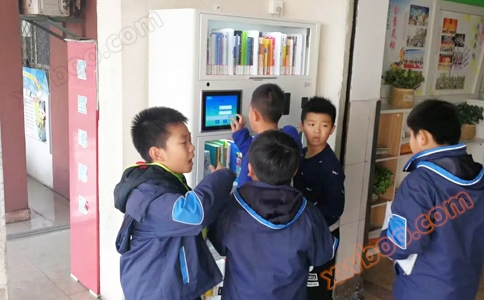

RFID high-frequency HF antenna tuning boardHA82XX， Our company is targetingSmart BookshelfHigh performance development of intelligent consumable cabinetsAntenna tuning boardMainly used in vertical antenna placement scenarios, it can modulate the standard frequency of 13.56MHz according to the customer's on-site environment and size requirementsantennaCombined with our digital signal series readers, they have been widely used in RFID system application fields such as library intelligent bookshelves, intelligent file management, new retail unmanned vending cabinets, important ticket management, test tube reagent management, drifting bookshelves, drug consignment cabinets, product positioning, entertainment industry confidential document management, fluent shelves, jewelry management, self-service laundry services, etc.

Features of Smart Bookshelf Antenna Tuning Board

Supports ISO/IEC 15693, ISO 18000-3 protocol readers and electronic tags;
Can support up to 5W RF power;
Standing wave ratio:<>
The induction distance of a single antenna can reach 30cm (antenna coil 20 * 26cm, reader power 5W, 50x50mm book label);
Coaxial cable MCX interface;
Attention: This antenna tuning board must be used in conjunction with our HR77XX series readers and HA70XX power divider board.

Physical characteristics of smart bookshelf antenna tuning board

Size: 82mmx21mmx9mm (not actual antenna size);
Net weight: 6g;
Working temperature: -10~+50 ℃
Storage temperature: -25~+80 ℃

Intelligent bookshelf topology diagram

Intelligent bookshelf antenna tuning board update product introduction:

RFID intelligent filing cabinet/filing cabinet high-frequency antennaHA2621， Developed for high-frequency bagged archives and vertical file management, using an integrated injection molded shell with a milky white appearance that is easy to integrate with the surrounding environment. The back panel screws are easy to install and integrated intoIntelligent filing cabinetIn China, an antenna tuning board developed for metal cabinets is suitable for various metal environments, achieving stable reading of high-frequency tags and applied toIntelligent filing cabinetSmart file cabinets, confidential file management, smart bookshelves, ticket management, shared books, mini libraries, distributed libraries, and other file management scenarios.

RFID intelligent filing cabinet/filing cabinet high-frequency antenna HA2621

Smart bookshelf antenna tuning board matching usage method:

RFID high-frequency HF (13.56MHz)smart antennaThe HA70XX power distribution board is designed by our company forSmart BookshelfThe development of intelligent consumable cabinetsHigh performance antennaPower distribution board, mainly used in multi antenna power distribution scenarios, can customize 4 or 6 antennas to be centralized into one reader antenna interface. Combined with our digital signal series readers, it has been widely used in RFID system application fields such as library intelligent bookshelves, intelligent file management, important ticket management, drifting book cabinets, drug consignment cabinets, fluent shelves, etc..

RFID high-frequency HF (13.56MHz) smart antenna power divider board HA70XX

RFIDSmart bookshelf/filing cabinet dedicated unit layer antennaHA9428， It is a 13.56MHz high-performance ISO/IEC 15693 antenna designed by our company for intelligent file management. It mainly consists of a power divider board (currently supporting four port and six port), an antenna tuning board, an organic glass board, and a metal shell. It can accurately read stacked book archive tags (book thickness of 4mm or more), and can accurately control the antenna recognition range to prevent cross reading of RFID electronic tags outside the bookshelf and on the upper and lower layers. The power distribution board can be connected to our company's one, four, eight, twelve, twenty-four, and thirty-two digital signal readers to form intelligent bookshelves with different layers. The product has been widely used in library intelligent bookshelves, intelligent archive management, important ticket management, shared picture books, drifting bookshelves, distributed libraries, and other document management occasions.

RFID intelligent bookshelf/filing cabinet dedicated unit layer antenna HA9428

Related solutions:RFID intelligent bookshelf management system

Introduction to smart bookshelf antenna tuning board related products

RFID high-frequency intelligent display cabinet shieldingantennaHA4232， It is a high-performance 50 Ω standard impedance 13.56MHz high-frequency deviceMetal shielded antennaThe standard SMA interface supports ISO/IEC 15693 protocol electronic tag readers with a maximum power of 6W, with a sensing distance of up to 55cm. It is widely used in various wireless radio frequency identification (RFID) systems such as catering management (smart disks), self-service book borrowing and returning machines, conference sign ins, book sorting lines, production line management, confidential file recognition, jewelry management, new retail, micro libraries, drifting bookcases, intelligent filing cabinets, license management, intelligent reagent cabinets, laboratory reagent management, intelligent display cabinets, counter product display management, voucher seal card management, medical high-value consumables management, etc.

RFID high-frequency intelligent display cabinet shielding antenna A4232

RFID high-frequency HFInventory of drivers holding antennasHA5911， It is a high-performance 50 Ω standard impedance 13.56MHz high-frequency handheld soft antenna that supports ISO/IEC 15693 protocol electronic tag readers. The antenna body is slim and can be bent and inserted between books at a certain angle. Widely used in various wireless radio frequency identification (RFID) systems such as book inventory, archive inventory, automatic inventory vehicles, mold management, asset inventory, personal identification, item management systems, and production process control.

RFID high-frequency HF inventory driver holding antenna HA5911

The RFID high-frequency 13.56MHz intelligent filing cabinet electronic tag reader/writer HR7748 is a high-performance ISO/IEC 15693 protocol electronic tag reader/writer. It adopts a fully digital signal processing design, with a processing speed more than 60% faster than analog signals. The RF output power is 0.5-5W and can be adjusted by software. It can be widely used in new retail unmanned vending cabinets, intelligent filing cabinets, drug consignment cabinets, intelligent filing cabinets, product positioning, medical consumables management, test tube reagent management, confidential document management, fluent shelves, jewelry management, self-service laundry services, production process control and other RFID system application fields.

RFID high-frequency 13.56MHz intelligent filing cabinet electronic tag reader/writer HR7748

The RFID high-frequency ISO/IEC 18000-3 Mode3 EPC Class-1 protocol reader HR3768 is developed for the rapid identification of dense tag overlap in confidential document management, seal card management, and certificate management. The typical tag processing speed exceeds 200 sheets per second, the RF output power can be adjusted by software from 0.5-7W, and the effective distance can reach more than 90cm. It can be widely used in RFID tag overlap identification applications such as archive management, seal card management, automotive certificate management, confidential document management, intelligent file cabinets, license management, and biological blood sample collection card management..

RFID high-frequency 18000-3 Mode3 EPC Class-1 protocol reader/writer HR3768

The RFID high-frequency HF book adhesive label HT6507 is a specialized tag for high-frequency book archive management, with a working frequency of 13.56MHz and ISO/IEC 15693 protocol. It adopts a unique tag antenna design and can read multiple tags over long distances. It is widely used in library management, intelligent archive cabinets, unmanned retail, asset management, clothing management, production line management, equipment inspection and other fields.

RFID high-frequency HF book adhesive label HT6507

The RFID intelligent archive file cabinet HZDA adopts a 13.56MHz frequency ISO/IEC18000-3 Mode3 protocol reader HR3768, as well as a HA2621 intelligent bookshelf dedicated antenna developed for the metal environment of intelligent circulation cabinets. Combined with the intelligent cabinet door lock controller, it is developed for industries that require real-time monitoring of important documents such as confidential documents, personnel files, top secret files, design drawings, mortgage certificates, bank seal cards, important circulation documents, important specimens, etc. Accurately locate files to each compartment, the intelligent filing cabinet does not need to block signals, and there is no identification area outside the cabinet. Through the APP, the high-frequency reader can be controlled to inventory files with file labels during collection and return, display the borrowing and returning list and inventory list, and use card swiping, ID card swiping, or QR code swiping to recognize and manage the permissions of the borrower and returner.

RFID intelligent filing cabinet HZDA

RFID high-frequency intelligent shelf HZHJ is developed for industries that require strict supervision of important items such as reagents, samples, medical consumables, non-metallic products, accessories, material boxes, etc. Using the 13.56MHz high-frequency ISO/IEC15693 protocol reader/writer HR7768, it accurately locates items to each layer. The intelligent shelf does not require signal shielding, and there is no recognition area outside the shelf. Combined with the backend management system, it can view real-time information about items on the shelf and customize various statistical reports according to customer requirements. Combining identity recognition technology can determine the information of personnel who receive and place items.

RFID intelligent shelf

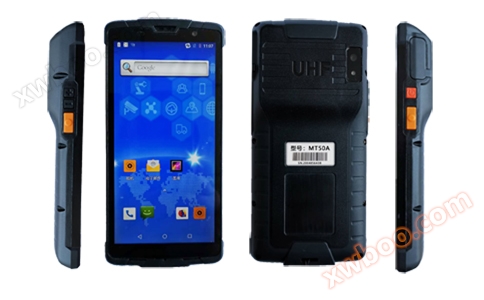

The RFID Ultra High Frequency (UHF) Android (Android 8.1 (periodic upgrade)) handheld terminal MT50A is equipped with an 8-core 2.0GHz high-performance processor, combined with the Android 8.1 (periodic upgrade) system, equipped with 2GB RAM and 16GB ROM memory, as well as a 5.5-inch IPS high brightness screen, optional barcode (one-dimensional or two-dimensional), RFID low-frequency (125KHz), high-frequency (13.56MHz), and ultra-high frequency (902-928MHz) high-performance modules. All six sides can withstand the impact of falling from a height of 1.5 meters to a cement floor, with an IP rating of up to IP65. It can be widely used in various wireless radio frequency identification (RFID) systems such as logistics and express delivery, equipment inspection, fixed asset management, medical care, anti-counterfeiting and traceability, product quality inspection, water and electricity meter reading, clothing ordering, mobile sales operations, etc.

RFID Ultra High Frequency (UHF) Android (Android 8.1 (periodic upgrade)) Handheld MT50A

RFID National Standard Military Standard Multi purpose RFID Ultra high Frequency Industrial Handheld Data Terminal PDA '>Handheld MT3, equipped with an eight core high-performance processor, combined with Android 9.0 (periodically upgraded) operating system, barcode (one-dimensional or two-dimensional), RFID high frequency (13.56MHz), ISO15693 card reading distance up to 30cm, ultra-high frequency (902-928MHz high-performance based on IMPINJ R2000 chip deep development) module, standard recognition distance up to 20 meters, can support national standard GB29768 protocol, military standard GJB7377.1A-2011/2018 protocol, WIFI 2.4G/5G dual band, 4G full network, GPS。 It can be widely used in various wireless radio frequency identification (RFID) systems such as confidential file management, equipment inspection, fixed asset management, medical care, anti-counterfeiting traceability, product quality inspection, warehouse management, mobile operations, etc.

RFID National Standard Military Standard Multi purpose Handheld Phone MT3
