Material reliability assessment, starting now - using a direct reading spectrometer to analyze metals in hard to reach areas

Oxford Instruments launches PMI-MASTER Smart

It is a truly portable metal analyzer

Due to its light weight and small size, PMI-MASTER Smart

Very easy to carry, analysis and measurement are not limited by the site, and metal analysis can also be achieved in hard to reach areas. Despite its compact size and structure, it can provide excellent analytical performance.

The rechargeable battery pack ensures sufficient standby time of 7 hours and hundreds of spark and arc excitations. Whether or not a battery pack is installed, or when charging the battery, PMI-MASTERSmart devices can work with an external power source.Due to the extremely low consumption of argon gas, a 1L argon cylinder is sufficient for several analyses (Ecocyl is recommended). If multiple analyses are required, a mobile vehicle can be chosen to secure the 10L steel cylinder.Compared to other mobile analyzers,

PMI-MASTER
Smart
What are the differences?
The weight is only 15 kg/33
lbs， Can be easily carried (other mobile analyzers require pushing or pulling)
Despite its compact size, it has complete and powerful analytical capabilities

Oxford Instruments patented optical system ensures stable analysis results even in moving and temperature changing environments

Convenient transportation: The accompanying luggage compartment can fit into any standard car trunk

Can be transported or carried at any time

True no power design: equipped with a rechargeable battery with a long capacity and an optional backup battery

Product Features

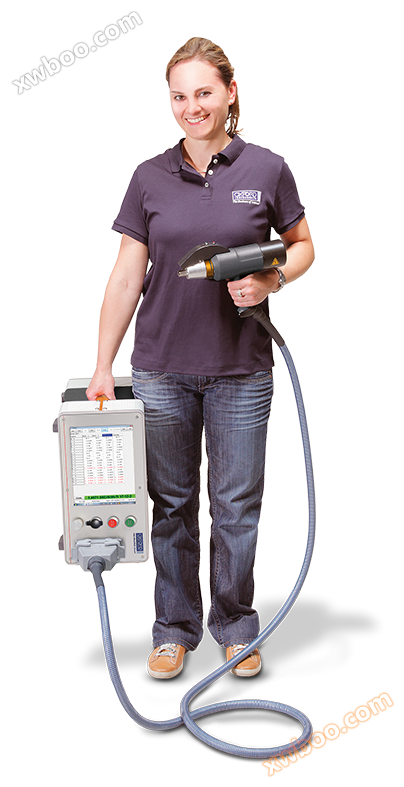

Three ways of carrying

The instrument weighs only 15 kg/33 lbs and can be carried directly to the analysis site

Durable luggage and accessories specifically designed for PMI-MASTER Smart

The luggage compartment is suitable for being placed in a standard car trunk, can also be carried on a plane and placed in the luggage compartment, or mailed

Can be easily pulled with a foldable small cart

If multiple centralized analyses are required, a mobile vehicle can be selected to fix the excitation gun and 10L argon gas cylinder

Small and compact in size, but powerful in analytical performance

Accurately analyze N *, C, P *, S *, Sn *, As *, and B * (* using UVTouch excitation gun)

)

Using a high-resolution optical system made of carbon fiber to ensure stable analysis results, even in environments with movement and temperature changes, it is not affected

Jet airflow technology ensures accurate results for detecting irregular or complex samples

Durable and dustproof TFT touch screen

Built in temperature control system to prevent instrument overheating

quick-access

No preheating required

Automatic calibration of optical system

No power supply design - ensuring mobility
No power supply required, powered by rechargeable batteries and optional backup batteries
The battery pack can provide sufficient power to ensure continuous measurement of hundreds of samples
Regardless of whether the battery is installed or charging, the instrument can be directly plugged into the power source for operation
Convenient, reliable, and flexible on-site metal analysis to meet quality and safety control requirements in the following areas
Factory and engineering construction
Incoming inspection and material reliability assessment
Petrochemicals and Chemicals
