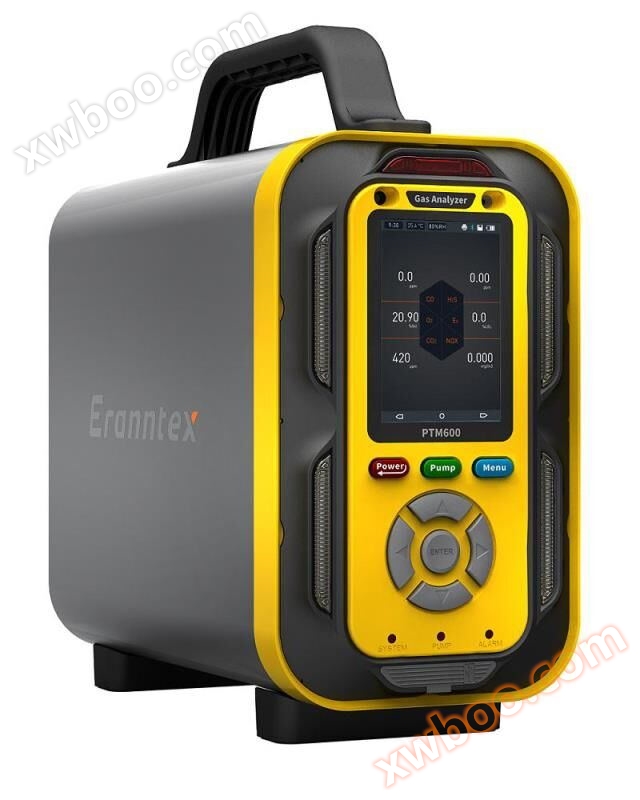

PTM600 portable composite gas analyzer
1、 Overview of PTM-600 Portable Composite Gas Analyzer I. PTM-600 Portable Composite Gas Analyzer is used for precise detection and analysis of variou
Product details
1PTM-600portablecompositeOverview of Gas Analyzer
1 PTM-600portablecompositegas analyzerUsed for precise detection and analysis of various gas concentrations and environmentstemperature and humidity measurement，PTM-600useReal time display of 3.5-inch high-definition color screen，Adopting internationally renowned brandsGas sensors,The main detection principles are:electrochemistry、Infrared, catalytic combustion, thermal conductivityPID photoionization, etc. useSwiss high-precision capacitive digital temperature and humidity sensor.advancedCircuit design, mature kernel algorithm processing,Unique exterior design,Obtained multiple software copyrights and design patents.PTM-600Suitable for detecting gas concentration in pipelines, confined spaces, and atmospheric environments; Gas leakage and high concentration of various background gases such as nitrogen or oxygenSingle gasPurity. Detection types exceedMore than 500 types.
IIPTM-600portablecompositeProduct features of gas analyzer
★Can simultaneously detect 1-6 gases, expandable to 18 gases, with unit free switching
Optional units:PPM、mg/m3、Vol%、LEL%、PPHM、ppb、mg/L。
★Built in pump suction measurement, integratedWater vapor and dust filters,Quick response, supports long-distance sampling
Built in water vapor and dust filtersTo prevent damage to sensors and instruments caused by water vapor and dust, it can be used in high humidity and high dust environments;Sampling distanceGreater than 10 meters,Special gas path design for direct detection;burdenPressure or positive pressure-0.5～2 kilograms of gas has no effect on the measurement results.
★Rich human-machine interface
3.5-inch high-definition color screen,Display real-time concentration, alarm, time, temperature, humidity, storage and other information; The menu interface uses high-definition simulation graphics to display the function names of each menu.
★bigcapacityData storage function (customizable capacity), supports multiple storage methods, optional remote wireless transmission function
Standard 100000 data storage capacity; Optional USB storage and SD card storage functions, supporting real-time storage, timed storage, or only storing alarm concentration data; Support local viewing and deletion of data, upload to computer for data analysis or printing through USB, RS232 interface or infrared communication.
★Multiple communication interfaces and printing functions
Infrared communication interface, RS232 interface, USB interface automatic recognition, optional built-in or external wireless infrared printer.
★High temperature gas detection(Optional)
Optional high temperature sampling and cooling filter handleOr high-temperature and high humidity pretreatment systemapproveDetect smoke at a temperature of 1300 degrees Celsius. Gas detection at other temperatures can be customized.
★threeThe display mode can be switched
Simultaneously display six gas concentrations, with large font circulating to display the concentration of a single channel gas, and real-time curve display.
★Graphical display,In the form of a curveReflect the trend of gas concentration changes over a period of time
★infrared remote control
OptionalInfrared remote control,One click operation can be performed through the function keys of the infrared remote control，For example, modifying alarm points, concentration calibration, zero calibration, noise reduction, factory reset and other functions.
● Data recovery functionIn case of misoperation, you can choose to partially or fully restore it
●Can be set whether or notDisplay maximum, minimum, and average values
●standardUSB charging interface, with charging protection function, supports USB hot plugging, and the charging status of the instrument can work normally
●usepass through10000mALarge capacity rechargeablemacromoleculepolymerBattery, capable of long-term continuous operation
●high-precisionTemperature and humidity measurement (optional)
●Support real-time detection or scheduled detection. When not detected, the pump can be turned off to extend the startup time
●Multiple alarm methods, with multi-dimensional and three-dimensional indication of alarm status during alarm
containacousto-opticAlarm and visual alarm on the display screen.
The types of alarms include concentration alarm, undervoltage alarm, and fault alarm.
●multiplecall the policeMode settings: low alarmHigh alarm, interval alarm, weighted average alarm
●Misoperation recognition function: Automatic identification and prevention of concentration calibration errors can avoid adverse effects caused by human factors
●Zero point automatic tracking, long-term use is not affected by zero drift
●Multi level calibration of target points to ensure measurement linearity and accuracy
●Chinese and English interface selectable
●Wide operating temperature:-40～+70℃Support temperature compensation
●Log recording
Record calibration logs, maintenance logs, fault records, fault resolution measures, sensor life expiration reminder, and next concentration calibration time reminder function.
●Meet the requirements of intrinsic safety circuitsdesignRequirement: Anti static and anti electromagnetic interference.
●Protection level up toIP66，waterproofsplash、DustproofExplosion proof and shock resistant
Technical parameters of composite gas analyzer
IIIPTM-600portablecompositeTechnical parameters of gas analyzer
、 Technical parameters of PTM600 portable composite gas analyzer
|
Detect gas
|
toxic gas、Oxygen, carbon dioxide, flammable and explosive gasesTVOC, etc，
1～6 gases can be freely combined and expanded to more than 18 gases.
Optional:Temperature and humidity measurement.
|
||||
|
Application scenarios
|
All occasions that require portable and rapid detection of gas concentration, such as petroleum, chemical, pharmaceutical, environmental protection, gas distribution, warehousing, flue gas analysis, air treatment, etc.
|
||||
|
detection range
|
0-1, 10, 100, 1000500050000、100000ppm、 200 milligrams per liter
100%LEL、20%、50%, 99.999%, 100%Vol optional, other ranges can be customized.
|
||||
|
Resolution
|
0.01ppm or 0.001ppm (0-10ppm);
0.01ppm（0～100 ppm），
0.1ppm（0～1000 ppm），
1 ppm (0-1000 ppm or more),
0.01 milligrams per liter (0-200% milligrams per liter)，
0.1%LEL，
0.01%，
0.001%Vol
|
||||
|
Detection Principle
|
Electrochemistry, catalytic combustion, infrared, thermal conductivity, PID photoionization, etc., depending on the gas type
It depends on the measurement range, on-site environment, and user requirements.
|
||||
|
Sensor lifespan
|
electrochemical principle2～3year, oxygen2 or 6 yearsOptional, infrared principle5～10 years,
Catalytic combustion for 3 years, thermal conductivity for 5 years, PID photoionization for 2 years～3year.
|
||||
|
Allowable error
|
≤±2%F.S(Other or higher precision can be customized)
|
||||
|
Linearity
|
≤±2%
|
Repeatability
|
≤±2%
|
Uncertainty
|
≤±2%
|
|
response time
|
T90≤20second
|
recovery time
|
≤30second
|
||
|
work environment
|
Temperature:-40℃～+70℃，Humidity:≤10～95%RH，The built-in filter can be used in high humidity or high dust environments
|
||||
|
Sample gas temperature
|
-40℃~+70℃，Optional high-temperature sampling and cooling filter handle, capable of detecting up toSmoke concentration at 1300 degrees
|
||||
|
temperature and humidity measurement
|
Optional: Temperature-40℃~+70℃, accuracy0.5℃; Humidity0～100%RH，accuracy3%RH
|
||||
|
workpower supply
|
3.6VDC，10000mALarge capacity rechargeable polymer battery
|
||||
|
Display mode
|
3.5-inch high-definition color screen
|
||||
|
detection
|
built-inPump suctionMeasurement,internet traffic800 milliliters per minute. CalibrationThe traffic should be greater than800 milliliters per minute, a three-way pipe should be connected for diversion to ensure that excess gas is discharged from the bypass
|
|
Alarm method
|
audible and visual alarmThe alarm can be set to be turned off
|
|
communication interface
|
USB (charging and communication), optional: RS232, infrared communication, automatic recognition
|
|
Data Storage
|
standard configuration100000 data storage capacity, optionalSD card storage、 USB storage
|
|
protection grade
|
IP66
|
|
Explosion proof type
|
intrinsically safetype
|
|
Explosion proof sign
|
Exia II CT6
|
|
External dimensions
|
230×210×120mm(L×H×W)
|
|
Weight
|
2.5Kg
|
|
Standard accessory
|
InstructionsCertificate of conformity, warranty cardUSBcharger(including data cable), high-end aluminum alloyInstrument box 、Built in humidity dust filter, 40cm stainless steel sampling handle (1-meter hose with dust filter, non extendable)
|
|
Optionalterm
|
Temperature and humidity measurement function1.2 mScalableSampling handle（1-10 meter hose, standard length 1 meter）TheExternal remote sampling pump, high temperature sampling and cooling filter handle、High temperature and high humidity pretreatment systemCD (upper computer communication software)ExternalMicro wireless infrared printerBuilt in micro printerSD card storageUSB storage, wireless data communication
|
