overview
Belt conveyors are mainly used to transport solid particles or powders, while environmentally friendly conveyors are mainly used for transporting grid slag and dehydrated sludge.

Working principle and structure
The oil immersed drum (transmission motor) drives the conveyor belt to move on the support roller, and the solid objects falling onto the belt move together with the conveyor belt until they reach the other end of the belt, completing the conveying process.

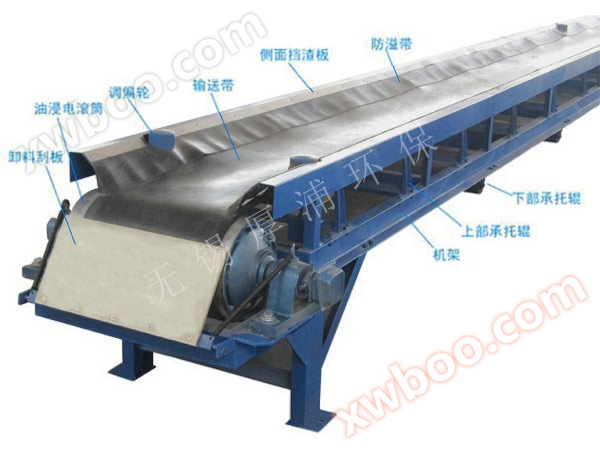

Belt conveyor mainly consists of oil immersed electric drum, auxiliary drum, frame, conveyor belt, upper support roller, lower support roller, adjusting roller, tightening device, unloading plate, etc.

technical performance parameters

bandwidth project	500	600	800
drum diameter	240, 320	240, 320	320, 400
linear velocity	0.5~0.8m/s
Motor Power	Select according to the conveying length and material being conveyed
Conveying capacity	25~40m/h	30~50m/h	40~70m/h

Required parameters for ordering
1. Belt width 2, conveying length 3, material 4, other requirements
