Product Overview

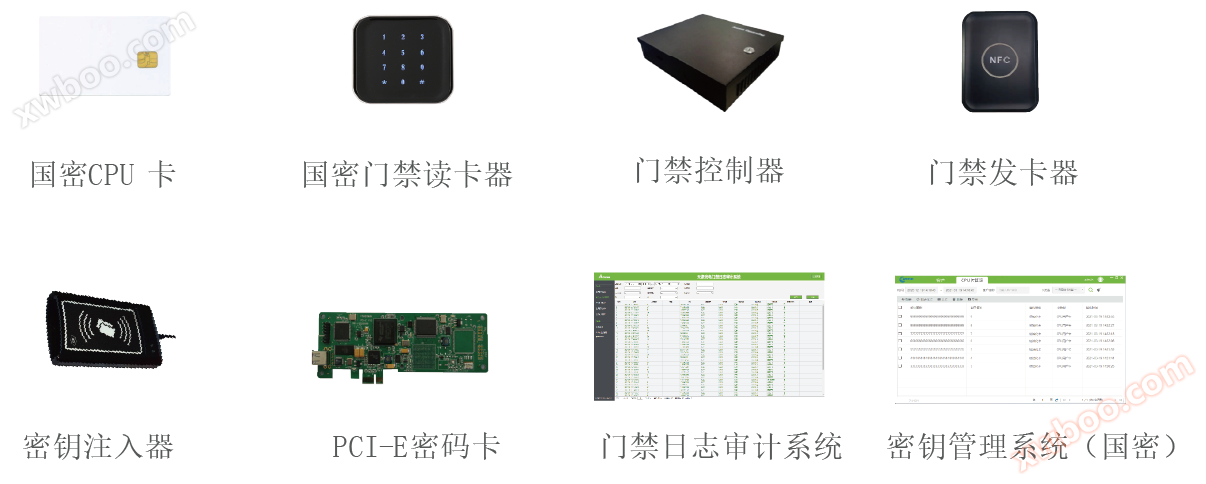

The national security access control system mainly consists of hardware devices such as access cards (national security CPU cards), national security access card readers, access controllers, access card issuers, key injectors, and PCI-E password cards, as well as software such as access management systems, access log audit systems, and key management systems. The system is provided with password security protection through relevant password devices or modules.

Among them, the national security CPU card and the national security door card reader adopt a challenge/response mechanism based on the SM1/SM4 national security algorithm to achieve user identity authentication. PCI-E password card (used in conjunction with the access control log audit system) adopts the SMC mechanism based on SM3 to achieve integrity protection of electronic access control entry and exit record data.

The product has undergone domestic compatibility adaptation and can be provided with a Xinchuang version.

Features

Adhere closely to the standards:Strictly follow the application requirements of various password technologies in the 39786 standard.

Multiple supporting solutions:Multiple options are available, including button/face/fingerprint card reader.

Legal and compliant:Adopt password products and password modules certified by the National Cryptography Bureau.

Safe and controllable:Support Xinchuang operating system and domestic databases.

Unified control:Can be integrated with the dynamic ring system/manifold platform.

Customized solutions:Support multiple customized solutions such as single door, double door, and four door.

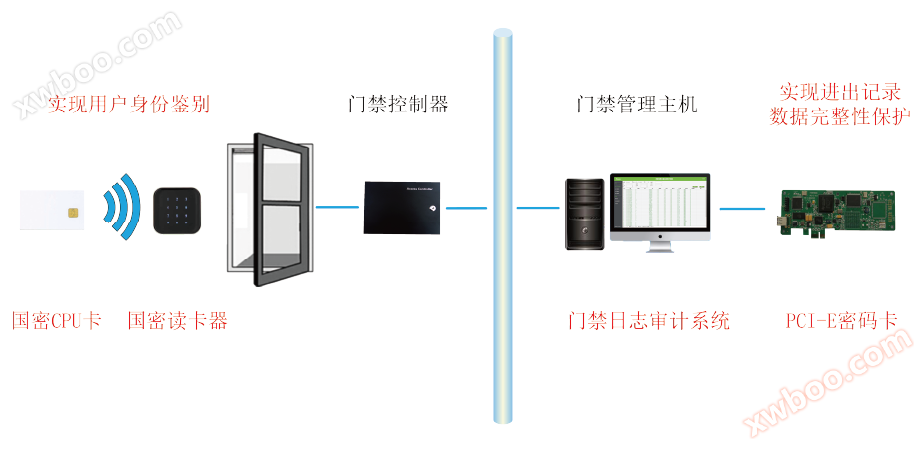

system architecture
