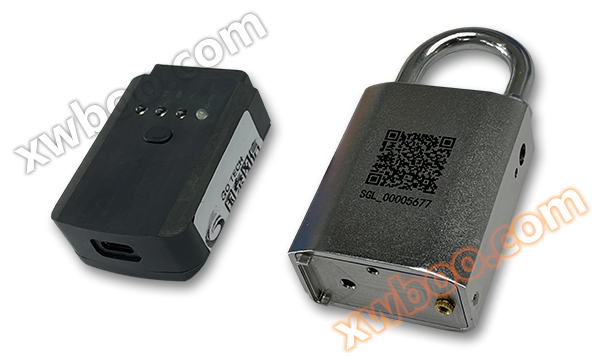

Product Overview

The intelligent IoT lock adopts the IoT architecture, based on mechanical lock body and traditional lock body materials, without changing the explosion-proof protection level of the lock body itself. It effectively solves the problems of single matching of traditional mechanical lock keys, inability to record the unlocking process, and inability to enter and exit the networked monitoring room due to power outages using intelligent chip technology, Bluetooth technology, electronic technology, integrated circuit design, etc.

Features

Safe and sturdy:Adopting a 304 stainless steel body seal, it cannot be damaged by simple tools such as screwdrivers, meeting the requirements of physical safety. Simultaneously adopting a wide temperature design and dust-proof and rainproof design, suitable for outdoor applications.

Record backup, event tracing:Real time data is uploaded for backup during the unlocking process to ensure traceability in case of an event.

Stable and reliable:Using the widely used Bluetooth communication technology as the basis for data exchange, this recognized communication technology provides reliable assurance for the product.

National encryption algorithm:Using national secret digital certificate authentication technology to safeguard security. The unlocking password uses the "one password at a time" method to ensure that it is not repeated. Built in national security chip stores digital certificates, ensuring secure key storage and encryption process.

Power supply separation:The power supply equipment driven by the lock is separated from the lock body, avoiding the situation where the lock needs to be charged on the operating site before it can be used. Adopting wireless power supply, the lock itself has no exposed electrical terminals, enhancing the electrical reliability of the lock.

Flexible authorization:The unlocking authorization of operators can be flexibly controlled through the management system, making "key" management more convenient.

Proactively report status:The lock body comes with a battery, which can report the status information of the lock body at regular intervals, and actively report any abnormal opening of the lock.

Log audit:The management system records the opening and closing time, operator information, and operator position information of each lock, providing sufficient data for operation and maintenance management.

Long lifespan:The interior of the lock body adopts disposable lithium sub batteries, which have the characteristics of high energy density, high reliability, and wide temperature range. Compared with ordinary disposable batteries and rechargeable lithium batteries, it has obvious performance advantages and can ensure the lock's status monitoring work for more than 8 years.

application deployment

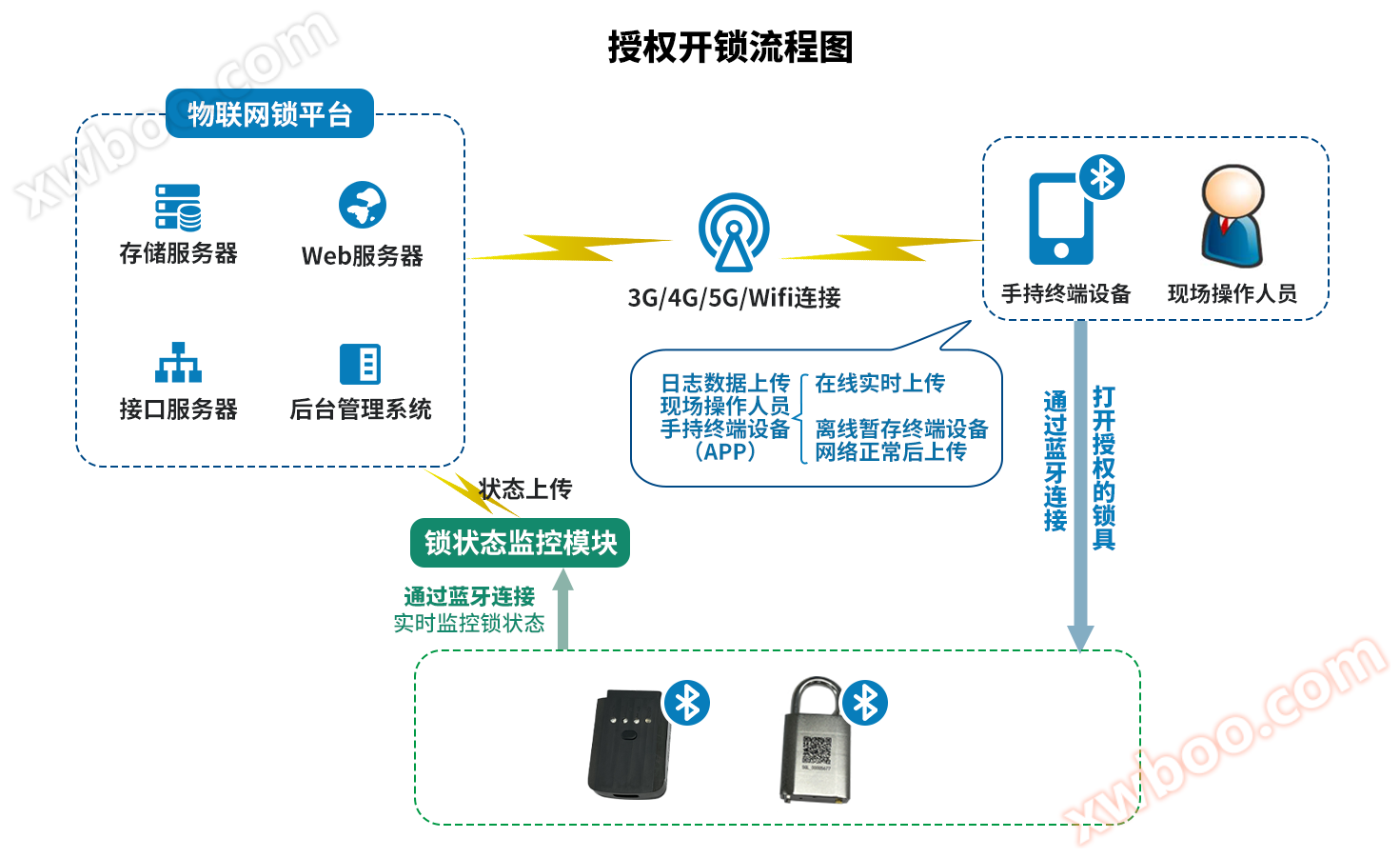

• The system consists of a lock body and power supply, a handheld operation APP, and an authorization management system:


Application scenarios

Intelligent meter box

Traffic signal control box

Street lighting control cabinet

Residential electricity meter box

Postal mailbox

charging pile

Light exchange box

Bank cash box

Other security scenarios
