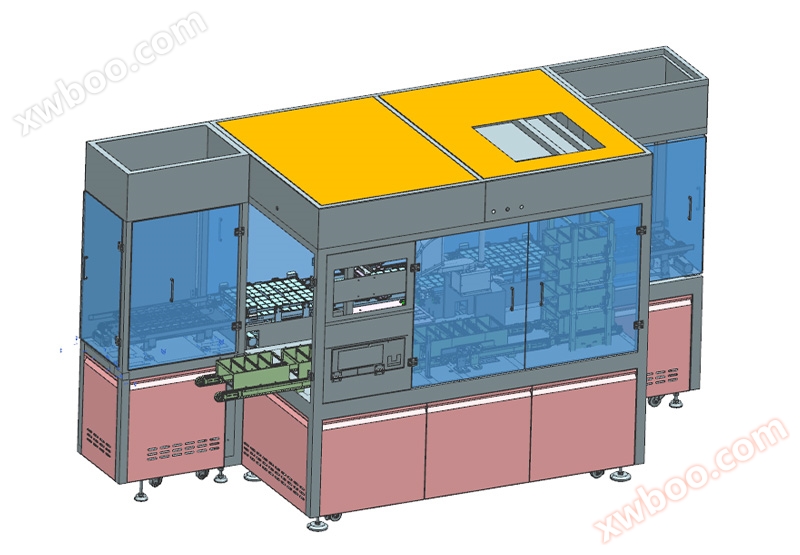

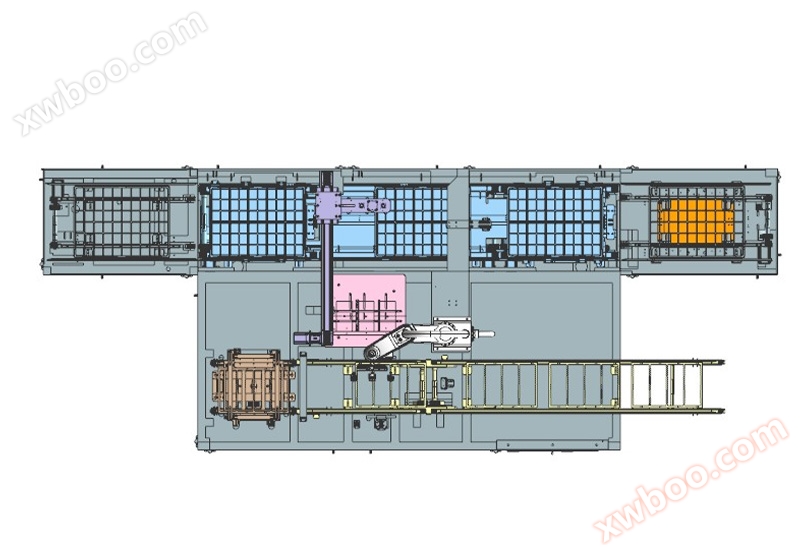

Machine specifications: ZX701-S1140V3
1. Machine size (mm): Insertion machine L2150 * W1430 * H2000
2. Machine size (mm): Flow disk machine L800 * W450 * H2000
3. Maximum tray size: 490 * 370mm
4. Maximum rack size: L360 * W230 * H105
5. Mechanical production capacity: 2500PCS/H
6. Applicable power supply: 220V/50Hz (1AC)
7. Applicable gas source: 4-6kg/cm2
8. Machine weight: approximately 500kg
9. Total power of the machine (non energy consumption): approximately 2KW

Advantages of the machine:
1. The production cycle of the entire machine's mechanical action can reach up to 2600-2800pcs/h, and the production cycle depends on the product process.
2. Fully automatic robot loading and unloading, avoiding human scratches and saving manpower.
3. Three piece picking and placing design to improve production efficiency.
4. CCD guided robotic arm inserts accurately.
5. Modular design, can be used standalone or connected for use.
6. The whole machine occupies less space than similar production lines.
7. The overall design structure is reasonable, the operation is simple and easy to understand, and the equipment maintenance is simple.
