FLIR Imager - Online and Handheld Dual Detection Solution

What is it?

Infrared thermal imager is an instrument that can detect body temperature. The temperature measurement principle of a thermal imager is to passively receive the infrared radiation emitted by an object for imaging and temperature measurement, and all objects above the determined zero degree (-273.15 degrees Celsius) will emit infrared radiation. Many airports, docks, train stations, passenger stations and other places can see thermal imaging detection work, and using thermal imaging cameras to measure body temperature does not harm the human body.

A thermal imager is a non-contact temperature measurement device that only requires a person to appear in the thermal imager lens to be measured. Moreover, the thermal imager has a fast response speed and can simultaneously measure all temperatures over a large area, making it suitable for places with high traffic such as airports and train stations.

At the end of 2019, the novel coronavirus epidemic broke out in Wuhan, and many cases of illness occurred in many places of the country.

On January 20, 2020, the State Council deployed measures for pneumonia epidemic prevention and control, including implementing temperature checks in key locations.

body temperature measurementIt is an important means of epidemic prediction, warning, and monitoring!

Core features and special advantages of the system:

•The advantages of infrared thermal imaging system for temperature screening

The surface of the human bodyHigh temperatures are generally located around the forehead, nasal base, and eye sockets, where there are more blood vessels and thinner epidermis. Infrared thermal imaging cameras can effectively reflect the temperature status of the tested human body and issue reliable alarms, making it convenient for staff to conduct rapid and large-scale investigations and effectively avoiding cross infection.

•Characteristics of IR Thermal OL Infrared Body Temperature Screening System

(1) Flexible deployment: The IR Thermal OL system is divided into OL Sin (infrared single light), OL Duo (infrared+visible light dual light), and OL Tripod (tripod) solutions, which can be flexibly deployed at the entrance of buildings, halls, airports, ports and other crowded places, and can be flexibly matched according to needs

(2) High temperature measurement accuracy and fast detection speed: temperature measurement accuracy ≤ 0.3 ℃, using FLIR movement to eliminate temperature drift, can work stably for a long time, multi-target automatic overheating detection,

(3) Modular design: All basic components are designed in a modular manner, allowing for interoperability, combination, and easy networking into local monitoring systems

(4) Traceable retrieval: Establish a high temperature alarm file that can be quickly reviewed and retrieved

Solution 1: IR Thermal OL Si Single Light Infrared Temperature Screening System

Option 2: IR Thermal OL Duo Dual Infrared Temperature Screening System

Solution Three: IR Thermal OL Tripod Single Light Infrared Temperature Screening System (Tripod Installation)

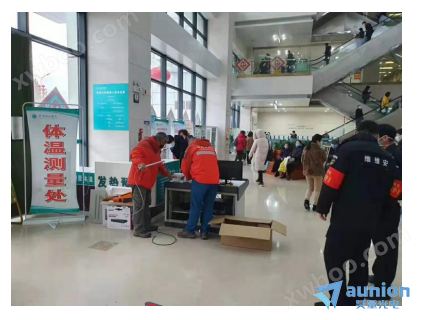

Application Case of IR Thermal OL

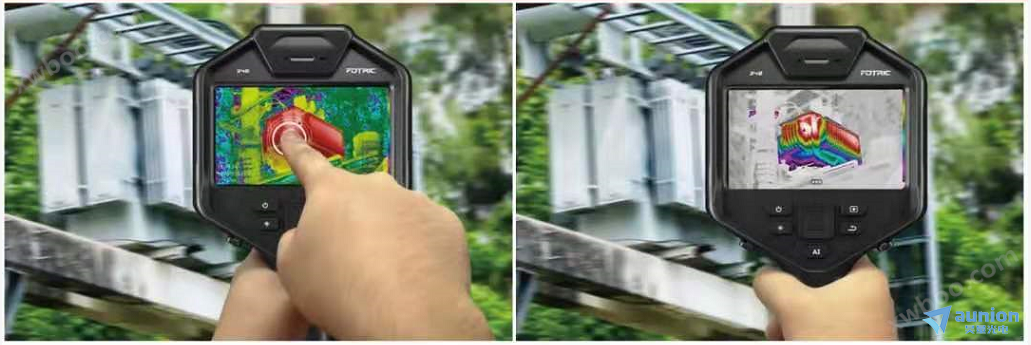

Handheld infrared thermal imager

FLIR E4, E5-XT, E6-XT, and E8-XT infrared thermal imagers are powerful, easy to use, and cost-effective, making them ideal troubleshooting tools for construction, electrical, and mechanical applications. To meet all the needs of users in terms of target size, working distance, visual details, and budget, the Ex series has four models to choose from (with a maximum infrared resolution of up to 320 × 240 pixels), and a precise temperature measurement range of up to -20 ° C to 550 ° C (E6-XT and E8-XT). All models in the Ex series support MSX ® Technology and Wi Fi functionality. MSX ® Technology can provide users with extraordinary thermal imaging details, and Wi Fi functionality supports devices through FLIR Tools ® Mobile applications connect to mobile devices such as smartphones and tablets, allowing users to easily share images and send reports from anywhere, facilitating faster decision-making. The Ex series thermal imager can provide users with clear infrared images to display electrical, mechanical, and construction related issues, thereby gaining a competitive advantage.
