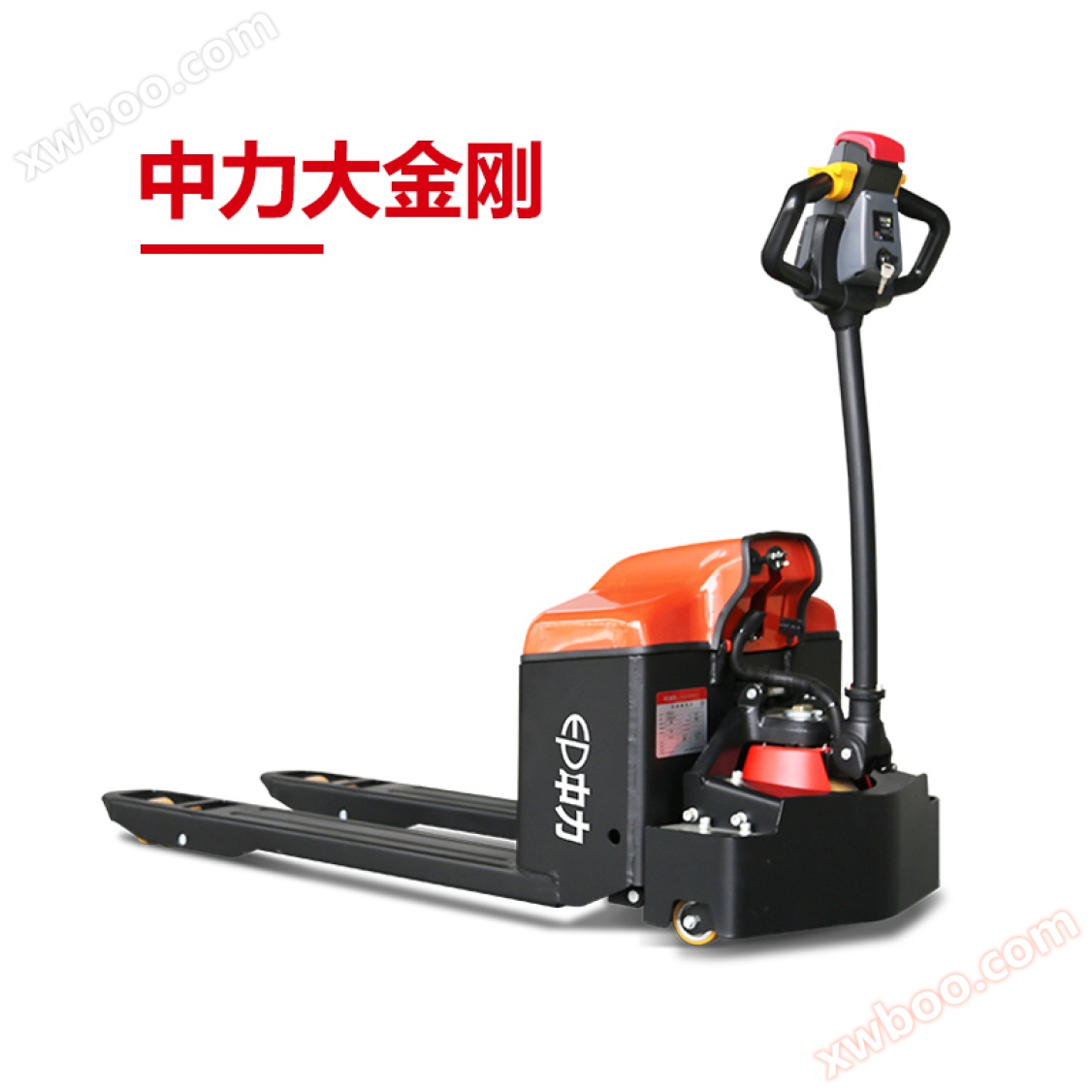

EPT16-ET/EPT20-ET 1.6/2.0 ton electric transport vehicle, Zhongli Dajiang
Product selling point: Superb power
Product details
 |
Superb power;Super off-road capability;Super endurance;
characteristic
| 1.1 | brand | Zhongli | Zhongli | |
| 1.2 | model | EPT16-ET | EPT20-ET | |
| 1.3 | Power type | electric | electric | |
| 1.4 | Operation type | Walking style | Walking style | |
| 1.5 | RATED LOAD | Q (kg) | 1600 | 2000 |
| 1.6 | load center | c (mm) | 600 | 600 |
| 1.8 | Bearing length | x (mm) | 875/976 | 874/962 |
| 1.9 | wheelbase | y (mm) | 1249/1350 | 1248/1336 |
weight
| 2.1 | Self weight (including battery) | kg | 215 | 220 |
Tires, chassis
| 3.1 | Tire type, drive wheel/load wheel (steering wheel) | Rubber/Polyurethane | Polyurethane/Polyurethane | |
| 3.2 | Drive wheel size (diameter x width) | Ф250x74 | Ф250x74 | |
| 3.3 | Bearing wheel size (diameter x width) | 4xФ80x40 | 4xФ78x60 | |
| 3.4 | Balance wheel size (diameter x width) | Ф74x48 | Ф74x48 |
size
| 4.4. | Standard maximum lifting height | h3 (mm) | 140 | 140 |
| 4.9 | Minimum/maximum height of operating position handle lever | h14 (mm) | 750/1170 | 750/1170 |
| 4.15 | Height of fork after descent | h13(mm) | 80 | 80 |
| 4.19 | Vehicle length | l1 (mm) | 1685 | 1685 |
| 4.20. | Length of the vertical surface of the fork upon arrival | l2 (mm) | 535 | 535 |
| 4.21 | overall width | b1/ b2 (mm) | 560（685） | 560（685） |
| 4.22 | Fork size | s/ e/ l (mm) | 50/150/1150 | 50/150/1150 |
| 4.25 | Fork outer width | b5 (mm) | 560（685） | 560（685） |
| 4.34.1 | The tray has a cross channel width of 1000 × 1200 | Ast (mm) | 1734 | 1734 |
| 4.34.2 | The tray has a cross channel width of 800 × 1200 | Ast (mm) | 1934 | 1934 |
| 4.35 | Turning radius | Wa (mm) | 1510 (lifting state) | 1496 (lifting state) |
performance parameter
| 5.1 | Walking speed, full load/empty load | km/ h | 4/5.5 | 4/5.5 |
| 5.2 | Lifting speed, full load/empty load | m/ s | 0.018/0.037 | 0.018/0.037 |
| 5.3 | Descent speed, full load/empty load | m/ s | 0.032/0.038 | 0.032/0.038 |
| 5.8 | Maximum climbing gradient, full load/empty load | % | 10/20 | 8/16 |
| 5.10. | Service brake type | electromagnetic type | electromagnetic type |
Electric motor, power unit
| 6.1 | Rated power of drive motor S2 60 minutes | kW | 0.75 | 0.75 |
| 6.2 | Rated power of lifting motor S3 15% | kW | 0.84 | 0.84 |
| 6.4 | Battery voltage/nominal capacity K5 | V/ Ah | 12*4/30 | 12*4/30 |
Drive/lifting mechanism
| 8.1 | Drive control type | DC | DC |
Other
| 10.5 | Steering type | machinery | machinery | |
| 10.7 | noise level | dB (A) | 74 | 74 |
If there are any technical parameters or configuration improvements, no further notice will be given, and the displayed chart may contain non-standard configurations.
