Product advantages:

1. Equipped with imported dual speed stainless steel electric drum.

2. The support leg includes 8 brake universal wheels, which are suitable for uneven ground.

3. The linkage function between devices can achieve one key sequential start and one key stop.

4. High work efficiency, up to 40t/hour.

5. The material outlet is equipped with a buffer device to reduce material damage.

6. It includes 14 long idlers and 30 small side idlers, making the conveyor belt load heavy and transport smoothly.

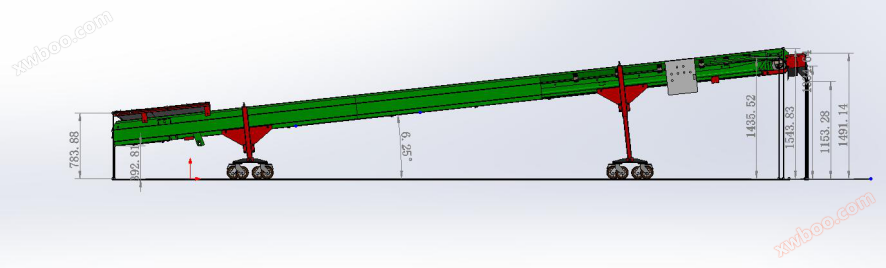

7. The lifting and lowering adjustment is convenient, and the maximum tilt angle state is shown in the following figure. Can adapt to different equipment combinations.

usage method:

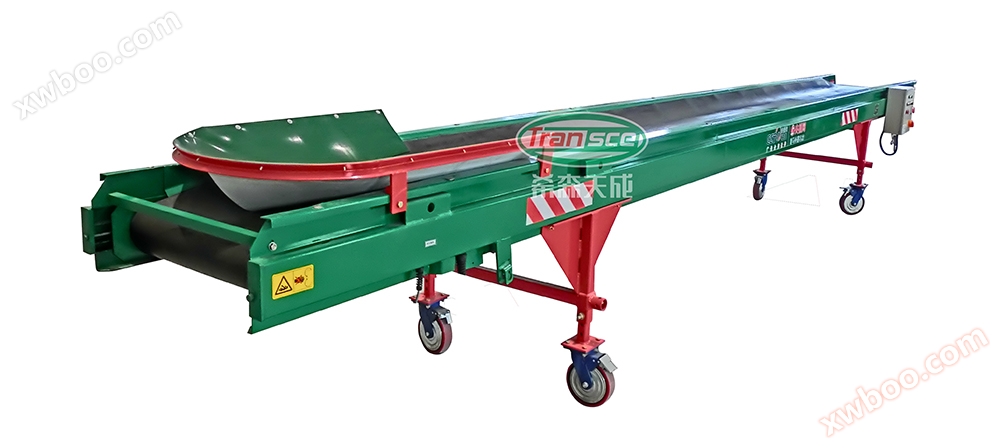

The 5S1-40 single-layer potato conveyor is a device suitable for transporting potatoes in fields and warehouses. After being sorted or transported by other equipment, potatoes are conveyed to other locations by a 5S1-40 single-layer potato conveyor. This device is equipped with a dual speed electric drum, a lifting base, and a unique tensioning passive wheel, which is easy to operate, convenient and practical, smooth and efficient. When this device is used in conjunction with other sorting equipment produced by our company, it can achieve linkage control between devices, which can improve work efficiency and effectively ensure human-machine safety.

The 5S1-40 single-layer potato conveyor mainly consists of a frame, base, control box, electric drum, tension adjustment passive wheel, and electrical connectors. This machine is equipped with four brake universal wheels, which can be easily moved to the work site before formal operation. After observing the position of the front and rear equipment overlapping with the single-layer conveyor, the entrance and exit of the single-layer conveyor can be adjusted to a suitable height and angle by adjusting the height of the front and rear lifting bases. Connect the power supply, press the start button, and the conveyor motor starts running. The whole machine is in a standby state. After the potatoes are transported by sorting or other conveying equipment, they fall into the receiving hopper of the single-layer conveyor and are conveyed to the target position by the conveyor belt.

Main technical parameters of Xisen Tiancheng 5S1-40 single-layer potato conveyor
