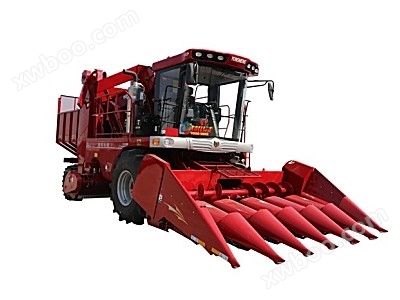

Brave 4YZ-6A15 (G4)/4YZ-6A16 self-propelled corn harvester product introduction

Adopting a new type of blade pulling type ear picking box and a new type of cutting platform, the stem pulling speed is fast and the ear picking effect is good; Using a dedicated support device for forced feeding, it is more suitable for harvesting fallen corn and has high harvesting efficiency; The minimum harvesting angle is 17 °, which can hit negative angles and has strong obstacle crossing ability. Equipped with an energy storage device as standard, it absorbs the impact energy of the cutting table and extends the service life of the entire machine;
The elevator is equipped with a floating impurity removal device as standard, which provides better stem cleaning effect;
The elevator is equipped with dual fans (hair dryer+suction fan) as standard, and the strong suction shell adds an air inlet adjustment port to improve the lifting and impurity removal ability;
The peeling machine adopts a full rubber six group flat roller peeling structure, with good peeling effect and a peeling rate of over 95% without scratching. Upgraded throwing roller, higher filling of grain silo;
Equipped with a grain impurity removal fan as standard, the recovered grains are clean and free of impurities. The grain return bin can be selected with the option to switch between returning to the grain bin or ear bin;
Equipped with a standard raised grain silo, the unloading height is increased to 3.1m, and the rear side panel of the silo is added with ear collision rubber to reduce ear damage;
Upgrade the model of the main beam of the Big Six platform rack, resulting in higher chassis strength;
The National IV 220 horsepower rear power take-off engine comes standard with a reversing fan and a tightly sealed engine fireproof cover, effectively preventing debris from entering the engine's enclosed space; Adopting a dedicated intercooled integrated combination reinforced water tank with high heat dissipation efficiency;
Adopting an electronic control multifunctional handle for control, with two adjustable steering gears to reduce blind spots on the cutting platform; Configure floating seats to reduce work intensity;
Optional cold and warm air conditioning, optimized layout, and a more comfortable working and harvesting environment;
■ Two wheel drive: Hydrostatic front wheel drive, 6650/6620 configuration, riding four fold six widened reinforced edge reduction, high-strength front and rear axles; Adopting a 1000 series hydraulic four speed gearbox, adding a climbing gear to improve the driving performance of the corn machine and ensure smoother operation. The front wheels come standard with 23.1-26 tires, with an optional 28L-26 high tread tire that is more adaptable to muddy conditions. The rear wheels have been upgraded to widened tires;
■ Four wheel drive: optional hydraulic and mechanical four-wheel drive, better synchronization and stronger driving force; It can switch between two wheel drive and four-wheel drive modes at will, and the vehicle has stronger obstacle clearance ability. Four wheel drive and two wheel drive universal chassis, with seamless switching between high and large wheels;
Add rear side lighting and grain storage lighting to the vehicle;
Add a widened platform on the left side of the machine, and expose the grain unloading port on the right side without obstruction, making maintenance and repair more convenient.

Brave 4YZ-6A15 (G4)/4YZ-6A16 self-propelled corn harvester Product details

1. Low angle cutting platform, capable of negative angle cutting and strong obstacle crossing ability; Add energy storage devices to absorb the impact energy of the cutting platform

2. Four wheel drive two wheel drive universal chassis, upgraded frame beam model, higher chassis strength

3. National IV 220 horsepower rear power take-off engine with standard reversing fan

4. The 6650/6620 configuration features a four fold, six fold, widened, reinforced edge reduction, and high-strength front and rear axles

Brave 4YZ-6A15 (G4)/4YZ-6A16 Corn Harvester Technical Parameters
