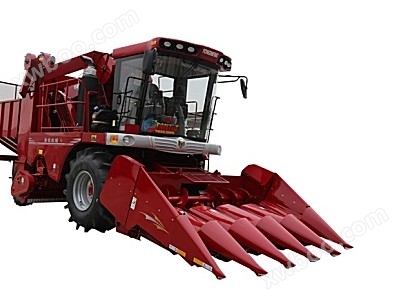

Brave 4YZ-5AQ1 (G4)/4YZ-5A14/4YZ-5A15 self-propelled corn harvester product introduction

Adopting a new type of blade pulling type ear picking box and a new type of cutting platform, the stem pulling speed is fast and the ear picking effect is good; Using a dedicated support device for forced feeding, it is more suitable for harvesting fallen corn and has high harvesting efficiency; The minimum harvesting angle is 17 °, which can hit negative angles and has strong obstacle crossing ability. Equipped with an energy storage device as standard, it absorbs the impact energy of the cutting table and extends the service life of the entire machine;
The elevator is equipped with a floating impurity removal device as standard, which provides better stem cleaning effect;
The elevator is equipped with dual fans (hair dryer+suction fan) as standard, and the strong suction shell adds an air inlet adjustment port to improve the lifting and impurity removal ability;
The peeling machine adopts a full rubber six group flat roller peeling structure, with good peeling effect and a peeling rate of over 95% without scratching. Upgraded throwing roller, higher filling of grain silo;
Equipped with a grain impurity removal fan as standard, the recovered grains are clean and free of impurities. The grain return bin can be selected with the option to switch between the grain return bin or the ear bin. Add anti-collision rubber to the rear side panel of the grain silo to reduce ear damage;
National IV power take-off engine, equipped with a reversing fan and a tightly sealed engine fireproof cover, effectively preventing debris from entering the engine enclosed space; Adopting a dedicated intercooled integrated combination reinforced water tank with high heat dissipation efficiency;
Adopting an electronic multifunctional handle for control, equipped with suspended seats to reduce work intensity;
Optional cold and warm air conditioning, optimized layout, and a more comfortable working and harvesting environment;
■ Hydrostatic front wheel drive, equipped with reinforced edge reduction and high-strength front axle, using a 1000 series hydraulic dedicated four speed gearbox, adding climbing gears to improve the driving performance of the corn machine, and ensuring smoother operation. The front wheels can be equipped with enlarged high flower tires 23.1-26 or 28L-26, which have stronger adaptability to muddy ground conditions;
Add rear side lighting and grain storage lighting to the vehicle;
Add a widened platform on the left side of the machine, and expose the grain unloading port on the right side without obstruction, making maintenance and repair more convenient.

Brave 4YZ-5AQ1 (G4)/4YZ-5A14/4YZ-5A15 self-propelled corn harvester details display

1. Add an accumulator to the low inclination cutting table to absorb the impact energy of the cutting table

2. Equipped with a grain impurity removal fan as standard, the recovered grains are clean and free of impurities. The grain can be returned to the grain bin with optional functions, and can be switched between returning to the grain bin or ear bin

3. The peeling machine adopts a full rubber six group flat roller peeling structure, which has a good peeling effect

4. Four wheel drive and two wheel drive universal chassis, with optional enlarged high tire 23.1-26 or 28L-26 for the front wheels

Brave 4YZ-5AQ1 (G4)/4YZ-5A14/4YZ-5A15 Corn Harvester Technical Parameters
