867 Classic Silver Series - The Perfect Combination of High Technology and High Cost Performance
867 Classic Silver Series - The Perfect Combination of High Technology and High Cost Performance
Product details
867-190145-M

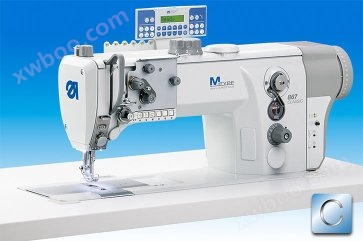

867 Classic Silver Series - The Perfect Combination of High Technology and High Cost Performance
"Economical" and "Classic" define the functionality and progressiveness of all models produced from the M-TYPE platform. The "economical" model means excellent stitch quality, easy maintenance, and modern design, but does not come with automatic functions such as automatic thread cutting, lifting feet, or reversing needles. The 'classic' model represents the best technology, performance, and comfort, maximizing efficiency and high flexibility.
The configuration level of the newly launched 867 Classic Silver Edition model is between that of the Economy Edition and the Classic Gold Edition models. The automatic function configuration, such as automatic thread cutting, lifting and pressing feet, and automatic needle return, coupled with a wide variety of sewing accessories and attachments, makes this model an ideal choice for medium and thick material applications.
867-190145The model is equipped with a short tail trimming device, with a tail length of only about 5 mm. The standard configuration includes a clamping device to ensure a neat seam. In addition, the model can also be equipped with a locking device for adjusting components to enhance the reliability of the production process.
Optimization functions for car seat production:
No need to manually cut the thread, the short tangent mechanism can ensure that the length of the thread tail is only about 5 mm
The functions of neat stitching and short line trimming can reduce the need for quality control in the production process, thereby improving production efficiency
Production efficiency advantage:
Cut the tail of the short line to ensure that the remaining length is only approximately 5 mm
• Fixed adjustable components to ensure high reliability of the production process (optional)
XXL ultra large capacity rotary shuttle further improves production efficiency (70% increase in shuttle line capacity compared to standard rotary shuttle)
• Use standard thread clamps to ensure a clean stitch line
Central oil rope lubrication (micro oil lubrication system)
Suitable for thread sizes up to Nm 15/3
The maximum sewing speed can reach 3400 needles per minute, ensuring high production capacity
Operational performance advantages:
The sewing area has an excellent viewing angle
• Low noise
• Integrated preferred shortcut function keys
The maximum sewing presser foot lifting height can reach 20 mm
The maximum foot stroke can reach 9 mm
Sub models867-190125It is the same model as 867-190145, with the only difference being that it is equipped with a regular vertical large rotary shuttle.
