Thermal oil electric heater is a new, safe, efficient and energy-saving special industrial furnace that can provide high-temperature heat energy at low pressure (normal pressure or lower pressure). It uses thermal oil as the heat carrier, circulates the heat carrier through a hot oil pump, and transfers heat to the heating equipment.

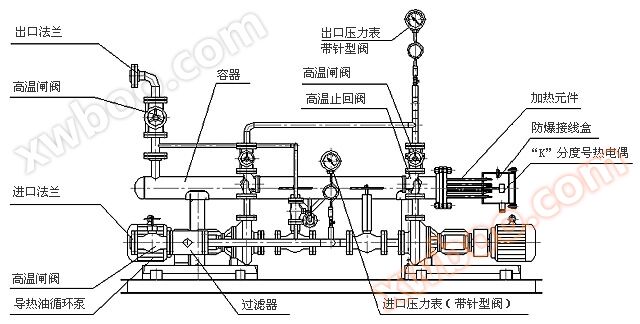

The electric heating heat transfer oil system consists of an explosion-proof electric heater, organic heat carrier furnace, heat exchanger (if any), on-site explosion-proof operation box, hot oil pump, expansion tank, etc., which are combined into one pry block. Users only need to connect the power supply, medium inlet and outlet pipelines, and some electrical interfaces to use it.

For a heat transfer oil electric heater, heat is generated and transmitted by an electric heating element immersed in the heat transfer oil. Using the heat transfer oil as a medium, a circulation pump is used to force the heat transfer oil to circulate in the liquid phase, transferring the heat to one or more heating devices. After being unloaded by the heating devices, the heat is re circulated through the circulation pump back to the heater, and then absorbed and transferred to the heating devices. This process repeats itself, achieving continuous heat transfer and raising the temperature of the heated object to meet the heating process requirements.
