42mm series hollow shaft stepper motor
42mm series hollow shaft stepper motor ● Flange size (□): 42mm ● Step angle: 1.8 ゜ ● Current/phase: 0.95A~2A ● Static distance: 1.6~7kgcm cm ● Lead ou
Product details
| Outline drawing(Single pole coil) |
We can customize the electrical parameters of the stepper motor according to your needs;
When installing the stepper motor, it is necessary to use the front end cover of the motor to install the stopper positioning, and pay attention to the tolerance fit to strictly ensure the concentricity between the output shaft of the stepper motor and the load.
| Outline drawing(Bipolar coil) |
We can customize the electrical parameters of the stepper motor according to your needs;
When installing the stepper motor, it is necessary to use the front end cover of the motor to install the stopper positioning, and pay attention to the tolerance fit to strictly ensure the concentricity between the output shaft of the stepper motor and the load.
| 42mm series |
model |
Overall dimensions |
Weight (kg) |
|||
L(mm) | |||||
YSD243-XXX |
33 |
0.22 |
|||
YSD244-XXX |
39 |
0.28 |
|||
YSD245-XXX |
47 |
0.35 |
|||
YSD246-XXX |
59 |
0.5 |
| Technical parameters (single pole coil) |
|
stepper motor model |
drive model |
current /Xiang |
resistance /Xiang |
inductance /Xiang |
Static torque |
leader line |
rotor inertia |
weight |
fuselage length |
|
single-axis |
|
A |
Ω |
mH |
kg-cm |
|
g-cm2 |
Kg |
L(mm) |
|
YSD243-HB6 |
SEA2D34 |
0.95 |
4.2 |
2.5 |
1.6 |
6 |
35 |
0.22 |
33 |
|
YSD244-HB6 |
1.2 |
3.3 |
3.2 |
2.6 |
6 |
54 |
0.28 |
39 |
||
YSD245-HB6 |
1.2 |
3.3 |
2.8 |
3.17 |
6 |
68 |
0.35 |
47 |
||
YSD246-HB6 |
1.2 |
6 |
7 |
6.5 |
6 |
102 |
0.5 |
59 |
||
※ For other special specifications, please negotiate with Yingshida Electromechanical or agents.
| Technical parameters (bipolar coil) |
|
stepper motor model |
drive model |
current /Xiang |
resistance /Xiang |
inductance /Xiang |
Static torque |
leader line |
rotor inertia |
weight |
fuselage length |
|
single-axis |
|
A |
Ω |
mH |
kg-cm |
|
g-cm2 |
Kg |
L(mm) |
|
YSD243-HB4 |
SEA2M24 |
1.5 |
1.2 |
1.8 |
2.6 |
4 |
34 |
0.22 |
33 |
|
YSD244-HB4 |
1.5 |
1.5 |
2.8 |
3.6 |
4 |
54 |
0.28 |
39 |
||
YSD245-HB4 |
2 |
1.1 |
1.6 |
4.5 |
4 |
68 |
0.35 |
47 |
||
YSD246-HB4 |
2 |
1.4 |
2.5 |
7 |
4 |
80 |
0.5 |
59 |
||
※ For other special specifications, please negotiate with Yingshida Electromechanical or agents.

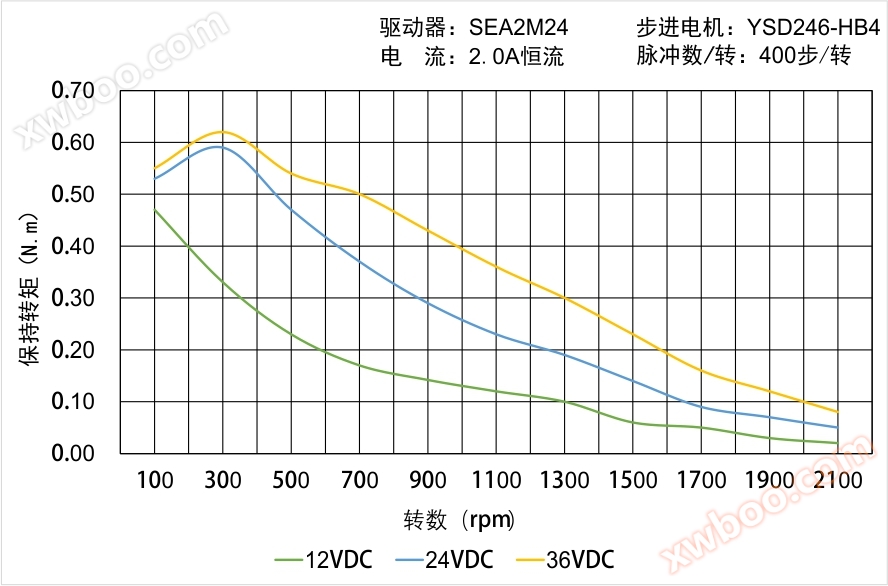

| Torque Frequency Curve (Bipolar Coil) |
The moment frequency curve graph is based on the measurement conditions of our company. When the conditions change, the moment frequency curve graph may also change.
Due to different driver conditions, the stepper motor may experience significant heating. Please use it when the temperature of the stepper motor casing is below 100 ℃.
Please set the set current of the driver to below the rated current of the stepper motor.
|
|
|
|
|
| Customized interface method |
|
|
|
||
|
42mm series Mazda interface: Moles 89401-1160 Lead end interface: Moles 87369-1100 |
42mm series Mazda interface: JST S6B-PH-K Lead end interface: JST PHR-6 |
□ 56mm series Mazda interface: JST S6B-FH Lead end interface: JST PHR-6 |
||
|
|
|
||
|
□ 56mm □ 60mm series Mazda interface: JST S11B-XH-A-1 Lead end interface: JST XHP-11 |
□ 56mm series Mazda interface: JST S6B-XH-A-1 Lead end interface: JST XHP-6 |
60mm series Mazda interface: JST S7B-XH-A-1 Lead end interface: JST XHP-7 |
| Technical Specifications |
project |
Technical Specifications |
Step angle |
1.8゜ |
step angle accuracy |
± 5% (whole step, no load) |
Resistance accuracy |
±10% |
Inductance accuracy |
±20% |
temperature rise |
80 ℃ Max (rated current, two phase AC) |
ambient temperature |
-20℃~+50℃ |
insulation resistance |
100MΩ Min500VDC |
pressure resistance |
500V AC for one minute |
radial clearance |
0.02Max (450g load) |
axial clearance |
0.08Max (450g load) |
Maximum radial load |
28N (20mm from the flange surface) |
Maximum axial load |
10N |
| Application field |
Woodworking carving machine, laser engraving machine, marking machine, labeling machine, solidification machine, wire bonding machine, UV printer, 3D printer, inkjet printer, plotter, embroidery machine, glue dispensing machine, glue filling machine, soldering machine, BGA repair table, bonding machine, surface mounting machine, hot press machine, backlight laminating machine, coating machine, reciprocating machine, terminal machine, wire stripping machine, winding machine, solder paste printing machine, PCB drilling machine, V-CUT machine, shooting machine, FPC reinforcement machine, coating machine, laminating machine, IC sorting machine, IC burning machine, tape weaving machine, medical equipment, non-standard equipment, XYZ measuring instrument, connector assembly machine, SMT peripheral equipment, etc
