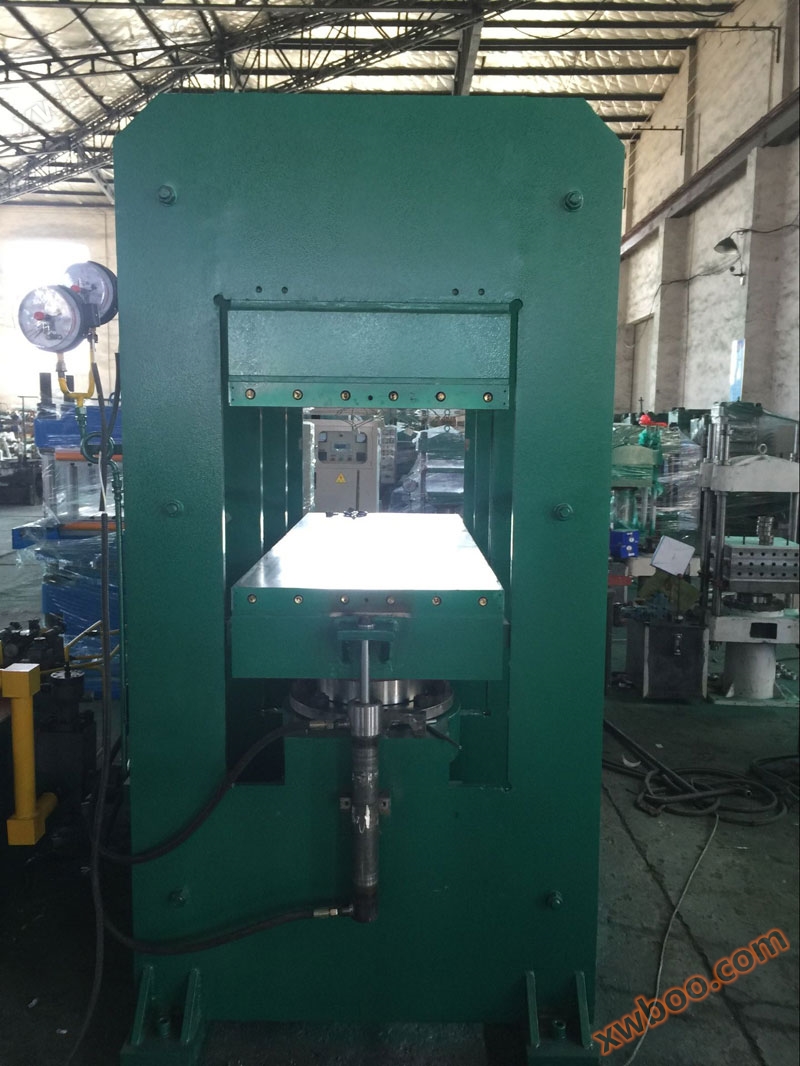

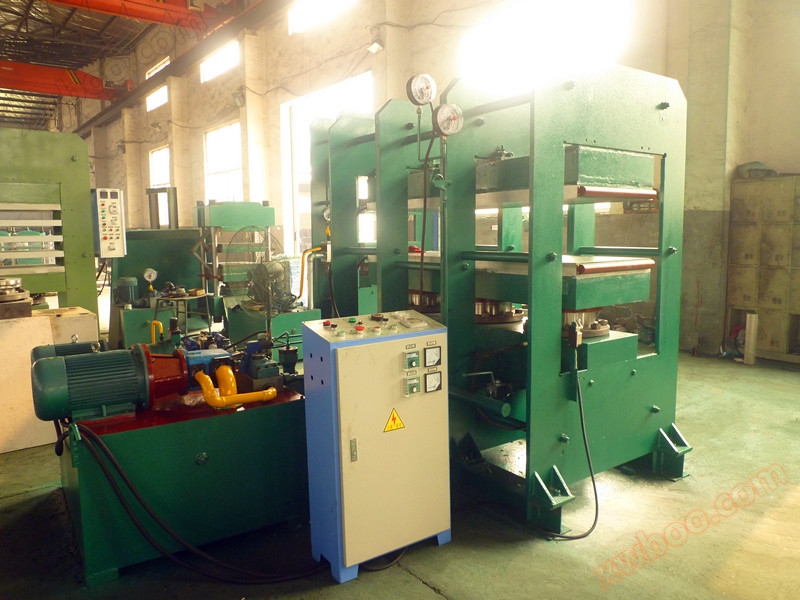

The flat vulcanizing machine is suitable for pressing various molded products, such as rubber and thermosetting plastics, as well as thin sheet products. The flat vulcanizing machine has a frame type integral structure and a pressing type of downward (downward) pressing. It is divided into three parts: the main machine, the oil tank, and the electric control box. The host is equipped with components such as plungers, oil cylinders, fixed plates, and movable plates. The fuel tank has components such as an oil pump, pipelines, valves, etc. The oil pump is driven by an electric motor, and the control box is equipped with button switches, magnetic starters, timing alarms, automatic temperature controllers, overload protectors, etc. When the motor is overloaded, the power supply can be automatically cut off. The electric heating is controlled by the automatic temperature controller in three ways and can be adjusted freely within the range of 20-200 ℃. When the temperature is reached, the circuit can automatically maintain a constant temperature. After reaching the set vulcanization time, it can automatically alarm. The three hot plates of the flat vulcanizing machine are accurately installed in the middle of the frame, and the middle hot plate is equipped with a guide sleeve for positioning, ensuring safe and reliable up and down travel.
Product model: XLB-600 × 1800 × 1/3.00MN
Nominal clamping force: 3.00MN
Hot plate specification: 600x1800x60mm
Thickness of frame plate; 25mm
Number of frames: 6 pages
Piston diameter: 300mm
Quantity and material of hydraulic cylinders: 3 sets of ductile iron
Main motor power: low voltage 11kw+high voltage 4kw
Hot plate spacing: 400mm
Number of working floors: 1 floor
Piston stroke: 400mm
Unit area pressure of hot plate: 2.7Mpa
Working fluid pressure: 16Mpa
Heating method: electric heating
Structural form: Frame type
Equipment weight: 6.8 tons
Control mode: Relay automatic control (automatic mold opening and closing, automatic exhaust, with forced mold opening)
