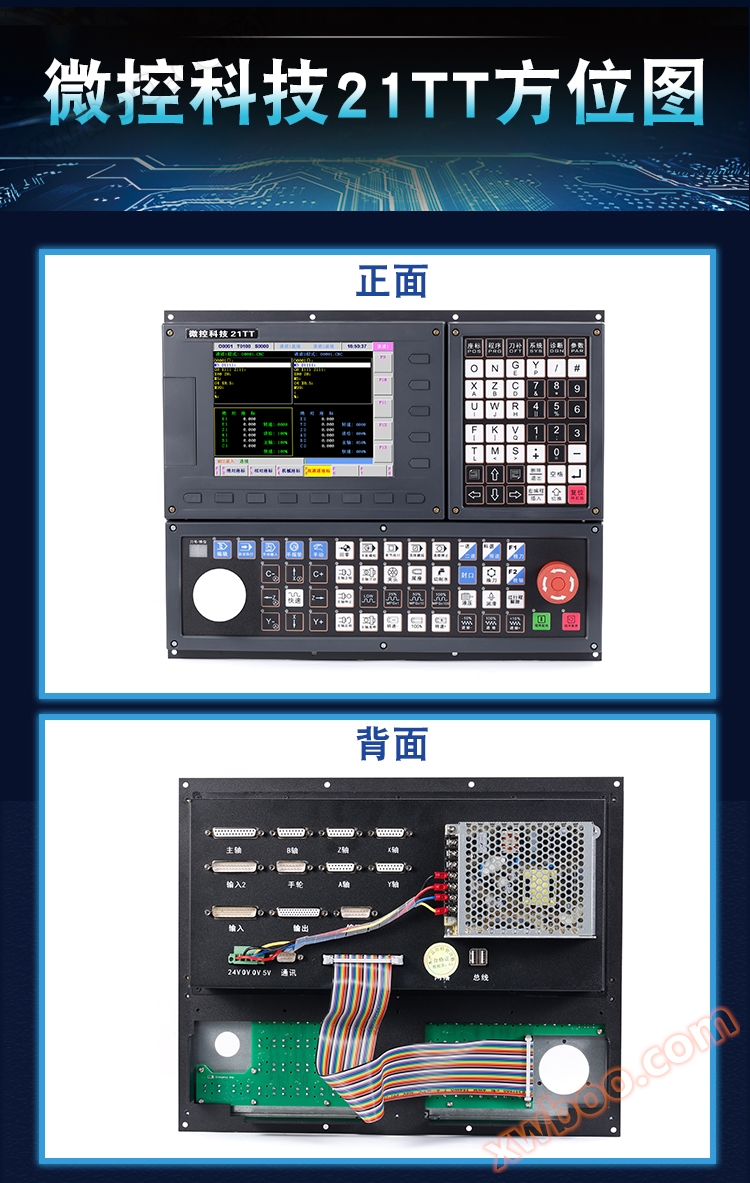

Model description of the 21TT dual channel lathe CNC system:

The 21TT dual channel lathe CNC system is a CNC product developed for dual channel machine tools. Adopting an 8.4 "color LCD, it has 6 feed axes, 2 analog spindles, 2 encoder feedback channels, and 2 manual pulse channels. Supporting multiple applications such as dual spindle/dual tool holder, single spindle/dual tool holder, dual spindle/single tool holder, etc., it has functions such as synchronous control, hybrid control, overlap control, interference detection, etc., which can meet the application needs of dual channel machine tools.

The functional features of the 21TT dual channel lathe CNC system:

Adopting an 8.4 "color LCD, it has 6 feed axes, 2 analog spindles, 2 encoder feedback channels, and 2 manual pulse channels. Supporting multiple applications such as dual spindle/dual tool holder, single spindle/dual tool holder, dual spindle/single tool holder, etc., it has functions such as synchronous control, hybrid control, overlap control, interference detection, etc., which can meet the application needs of dual channel machine tools.

2 channels, 6 feed axes, 2 analog spindles, and 2 encoder feedback channels. Two hand veins.

Minimum control accuracy of 0.1um, maximum moving speed of 60M/min

Standard servo unit, servo motor position feedback using 2500 line encoder

Adapting to servo spindles can achieve spindle orientation, rigid tapping, cylindrical interpolation, and polar coordinate interpolation.

Support dual spindle/dual tool holder, single spindle/dual tool holder, dual spindle/single tool holder applications

Built in PLC, ladder diagram online display, real-time monitoring, expandable serial I/O unit

It has unique functions such as simple synchronization control, hybrid control, overlap control, inter channel interference detection, and waiting for M code.

Equipped with hand pulse test cutting, hand pulse interruption function, and teaching function;

Equipped with online machine tool debugging guide, auxiliary programming, trajectory preview, macro variable annotation/customization, direct input of graphic dimensions, and other functions;

MDI Multi Program Segment Execution

8.4-inch true color LCD, supporting multiple displays such as Chinese, English, Russian, etc

The system has a balanced cutting function, which allows the cutting feed in both channels to be executed simultaneously. Suitable for processing slender workpieces, it can prevent workpiece bending caused by one-sided processing, thereby ensuring the machining accuracy of the parts.

The system has a hybrid control function, which means that any axis between two channels can be interchanged to achieve movement control of axes between channels.

The system has an overlap control function, which allows the axis that executes the movement instruction (overlapping sub control axis) to superimpose the movement amount of other axes (overlapping main control axis) on the movement amount

Special advantages of the 21TT dual channel lathe CNC system:

1. Speed advantage

·The maximum fast movement speed can reach 60m/min

·The maximum cutting speed can reach 30m/min

·Cutting feed: Front acceleration and deceleration linear type, Front acceleration and deceleration S-shaped type, Rear acceleration and deceleration linear type, Rear acceleration and deceleration exponential type

·Fast movement: front acceleration and deceleration straight line type, front acceleration and deceleration S-shape type, rear acceleration and deceleration straight line type, rear acceleration and deceleration index type

·Thread cutting: linear and exponential can be used

·The starting speed, ending speed, and acceleration/deceleration time are set by parameters

·Program preprocessing can achieve smooth and seamless connection between program segments; Smooth transitions can be selected between program segments

2. Precision advantage

·Screw pitch compensation, memory type pitch error compensation, maximize machining accuracy

·1ms high-speed interpolation, with control accuracy of 1 μ m and 0.1 μ m optional, significantly improves the efficiency, accuracy, and surface quality of part processing.

3. Interface advantages

·Users can edit the I/O logic control by themselves, with 18 inputs and 18 outputs. The input signal can achieve online switching between high and low levels

·PLC program communication download

·USB removable USB copy interface, capable of implementing USB DNC function, external massive storage, system upgrade, parameter and ladder map copy/restore

·RS232: Bidirectional transmission of part programs, parameters, and other files, supporting PLC program and system software serial port upgrades

·Can be equipped with external handwheel or panel handwheel

·Spindle frequency conversion control, feed axis pulse control

4. Operational advantages

·Full screen editing system, online modification of knife repair, parameters and other operations

·Two dimensional tool path display, with graphics that can be enlarged, reduced, or translated freely, and the orientation of the graphic coordinate system can be changed

·It can achieve multi-level password protection, such as program, parameter, and ladder diagram protection, which is convenient for on-site management

·Compatible with mainstream CNC system instruction codes both domestically and internationally

·Real time adjustment of spindle, feed rate, and fast speed

·Any program segment starts processing, any tool number starts processing

·During the processing, switch between single segment and continuous at will

·Support handwheel trial cutting function

·Support program/program segment/word retrieval, modification, deletion, copying, and pasting

·Can view alarm records for easy identification of program errors or machine malfunctions

·Support the help function, which allows you to view the code meaning and operation instructions

·Support online editing of PLC

·Supports multiple PLC programs (up to 20), and the currently running PLC program can be selected

·Switching between Chinese and English interfaces

·User defined I/O
