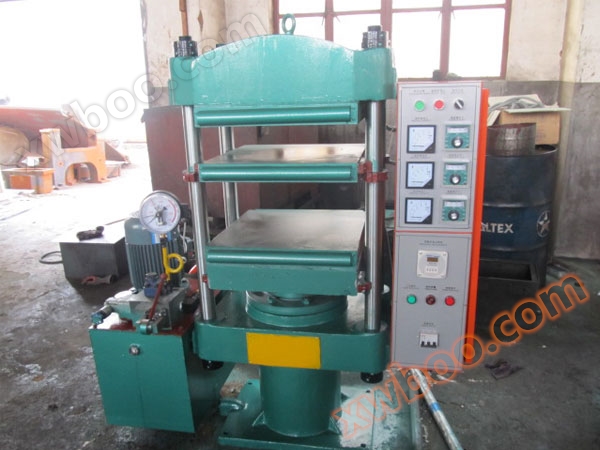

100t steam heated flat vulcanizing machine
100t steam heated flat vulcanizing machine
Product details
| project | XLB- D/Q350×350 | XLB- D/Q400×400 | XLB- D/Q500×500 | XLB-D/Q600×600 | XLB-D/Q700×700 |
| Nominal clamping force (MN) | 0.25 | 0.50 | 0.60 | 1.0 | 1.60 |
| Hot plate specification (mm) | 350×350 | 400×400 | 500×500 | 600×600 | 700×700 |
| Hot plate spacing (mm) | 125 | 125 | 150 | 150 | 150 |
| number of working layers | 2 | 2 | 2 | 2 | 2 |
| Maximum hydraulic pressure | 16 | 16 | 20 | 16 | 16 |
| Unit area pressure of hot plate (Kg/c ㎡) | 20.4 | 31.25 | 25.2 | 28 | 24.4 |
| Piston diameter (mm) | 152 | 200 | 200 | 300 | 360 |
| Heating method | Steam/oil/electricity | Steam/oil/electricity | Steam/oil/electricity | Steam/oil/electricity | Steam/oil/electricity |
| Heating power of each electric heating plate | 2 | 3 | 3 | 4.2 | 4.8 |
| Operation method | manual | manual | manual | manual | manual |
| Motor power (KW) | 2.2 | 2.2 | 2.2 | 3 | 4 |
| project | XLB- D/Q800×800 | XLB- D/Q900×900 | XLB- D/Q1000×1000 | XLB-D/Q1200×1200 | XLB-D/Q1500×1500 |
| Nominal clamping force (MN) | 1.60 | 2.0 | 2.50 | 3.15 | 4.0 |
| Hot plate specification (mm) | 800×800 | 900×900 | 1000×1000 | 1200×1200 | 1500×1500 |
| Hot plate distance (mm) | 250 | 500 | 500 | 500 | 500 |
| number of working layers | 2 | 1 | 1 | 1 | 1 |
| Maximum hydraulic pressure | 16 | 16 | 16 | 16 | 16 |
| Unit area pressure of hot plate (Kg/c ㎡) | 25 | 25 | 25 | 22 | 18 |
| Piston diameter (mm) | 360 | 400 | 450 | 500 | 560 |
| Heating method | Steam/oil/electricity | Steam/oil/electricity | Steam/oil/electricity | Steam/oil/electricity | Steam/oil/electricity |
| Heating power of each electric heating plate | 6 | 11 | 12 | 15 | 18 |
| Operation method | manual | manual | manual | manual | automatic |
| Motor power (KW) | 4 | 5.5 | 5.5 | 5.5 | 7.5 |
