[Key Features ]

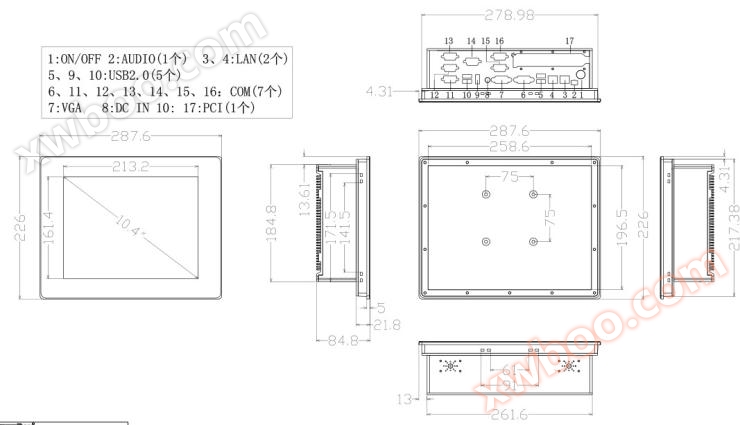

10.4 Inch colorTFTIndustrial display screens,1024X768(800X600)optionalResolution, industrial five line touch screen,ruggedizedHigh brightness (visible under sunlight), high cost-effectiveness.The highest that can be provided10Serial port（10aCOM口），complete machineIP65andIP66Waterproof and dustproof options, embedded installation (optional). Please refer to the product sample drawing for detailed dimensions.

The built-in standard configuration is: CPU: D5251.86GHZMemory:2GB(Maximum supported)4GB）Hard drive: 160GB(Other optional) System: SupportsWIN XP WIN 7WIN8 Interface: 5aUSB 7aCOM 2aLAN口1aVGA1 piecePCI-E expansion port Power Supply:DC12VPower supply (optional Phoenix terminal power supply) Touch screen: Industrial VLine resistance screen (Optional sound wave screen, capacitive screen).

Installation supports multiple embedded installations,tallThe strong all steel box structure enables it to adapt to harsh working environments in industrial sites, making it the most suitable for applicationFactory automation, mechanical manufacturing, CNC equipment, textile equipment, communication networks, power automation, aerospace and other harsh industrial environments.

Packaging and transportation documents:

Accessoriesdirect current12V-5AOne power supply, motherboard driver CD, touch screen driver CD, embedded installation clip (for embedded installation machines),

Machine size:288X226X85mm

Package dimensions:350X290X143mm
Net weight of equipment: 4.5KG

Gross weight of packaging: 5.6KG

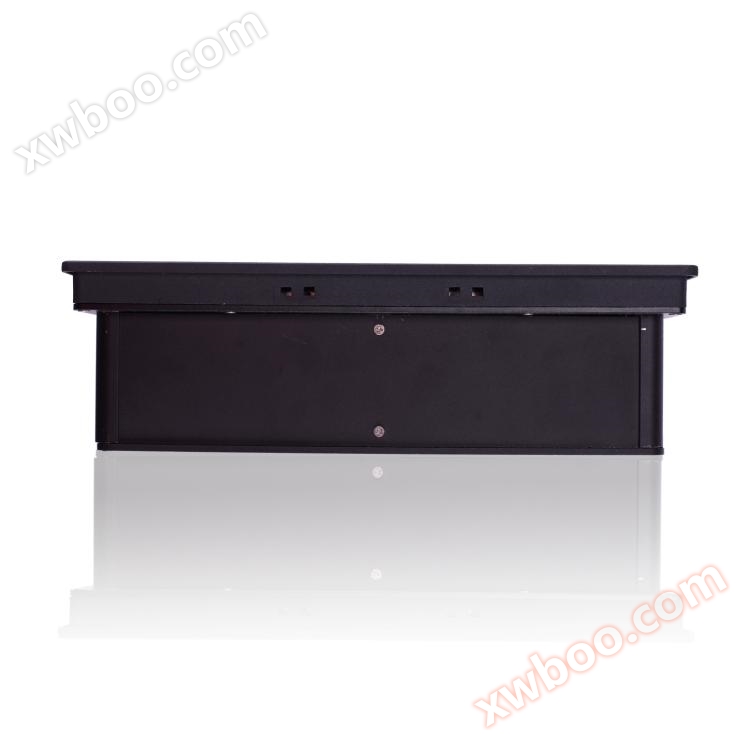

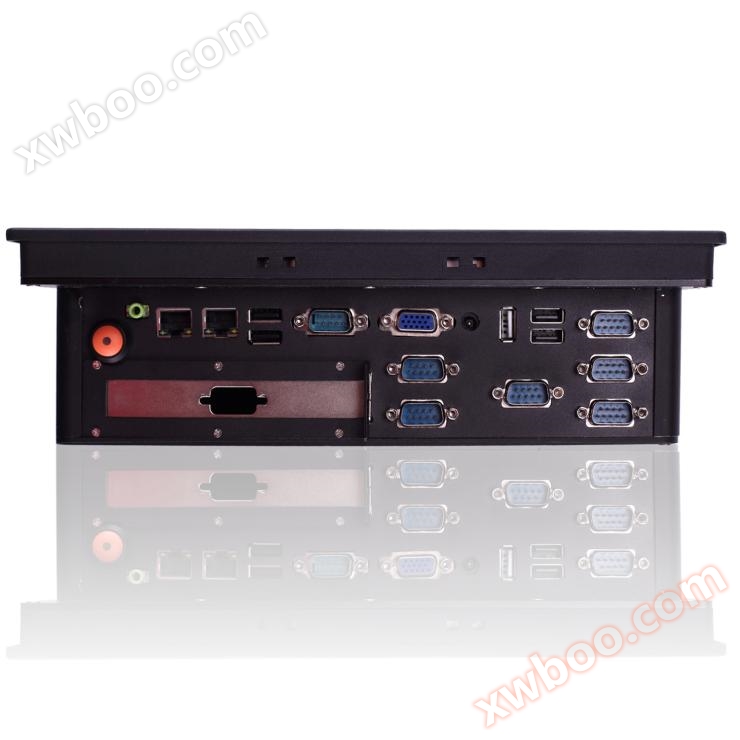

[Product sample image ]
